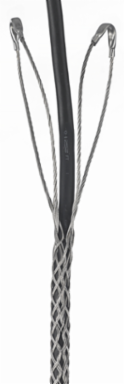

Hubbell Wiring Device-Kellems 02207006 Double Eye Split Mesh Support Grips, Tin-Coated Bronze, 2.50-2.99 Inch
- MPN: 02207006
- UPC: 783585304533
- PPN: HBL-02207006
- UNSPSC: 39121719
CAD
$812.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Support Grips, Double Eye, Double Weave, Split Mesh, Lace Closing, Tin-Coated Bronze, 2.50-2.99"
Features
- Double eye
- Strand equalizers position wires for equal loading throughout grip length
- Eye assemblies provide eye reinforcement at support hardware
- Split Mesh- Lace Closing
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Puerto Rico |
|---|---|
| Cable Diameter Range | 2.5 in-2.99 in |
| Industry Standard(s) | CSA Certified |
| Application | Double Eye |
| Special Features | Split Mesh- Lace Closing |
| Type | Double Eye |
| General Literature Asset 1 Display Text | Pulp & Paper Solutions |
| General Literature Asset 3 Display Text | FOOD & BEVERAGE SOLUTIONS |
| Class Code | A52 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A52A480 |
| Construction | Woven |
| Series | Heavy Duty Series |
| BOX SIZE | 12.100x31.900x18.900 (in) |
| Carton - Number of Sub Packs | 5 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585304533 |
| Case Weight | 39.050 lb. |
| Lowest Level UOM | Each |
| Approx Breaking Strength | 8,050 lb. |
|---|---|
| Width | 5.500 in |
| Performance | Mechanical - Approximate Breaking Strength - 8,050 (35,806);Mechanical - Working Load - 805 (3580.6) Lbs. (N) |
| Cable Size | 2.50"-2.99" (6.35-7.59) |
| Standard | CSA Certified |
| Weight | 3.55 lb. |
| General Literature Asset 2 Display Text | PULP & PAPER SOLUTIONS |
| Style | Split Mesh, Lace Closing |
| Description - Invoice | HD DBL EYE SUP GRIP, 2.5-3.0"; BRZ, LACE |
| Harmonization Code | 7419805050 |
| MSDS Flag | No |
| Material - Mounting Hardware | Screw Hook or Beam Clamp |
| Material | Bronze, Tin Coated |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 11.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 5 EA |
| Each - Pack Description | Each |
| NAICS Code | 3359323114 |
