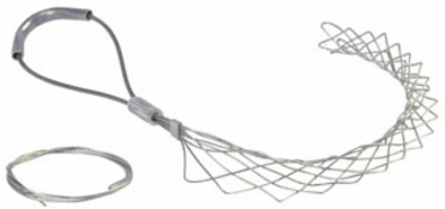

Pass & Seymour FS050OF Flexcor® Support Grip Standard Duty 0.50-0.61 Inch Cable Diameter, Bale 4 Inch, Mesh 11 Inch
Pass & Seymour FS050OF Flexcor® Support Grip Standard Duty 0.50-0.61 Inch Cable Diameter, Bale 4 Inch, Mesh 11 Inch
- MPN: FS050OF
- UPC: 785007983845
- PPN: P-S-FS050OF
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$60.20/ EA
Description
Flexcor® Support Grip Standard Duty 0.50-0.61 Inch Cable Diameter, Bale 4 Inch, Mesh 11 Inch
Features
- Split lace support grips are used when the end of the cable cannot easily be accessed and the support grip is intended for permanent installation.
- Split lace support grips are designed for loads up to 600 lbs.
- Vertical runs of no more than 100 ft.
- They are available in a variety of eye styles and cable ranges for supporting electrical and fiber optic cable, metal rods, and tubing.
- Support grips are woven of corrosion-resistant tinned-stainless steel wire.
- Most Flexcor products have UL and/or CSA approvals. Please contact factory for approval information.
- Bale Length: 4: Mesh Length: 11
Specifications
Specifications
- Country of Origin
- Mexico
- Eye Style
- Offset
- Indoor/Outdoor
- Both
- Mesh Type
- Split Lace
- Minimum Cable Range
- 0.61 in
- Approximate Break Strength
- 500.0 lb
- Capacity
- Various Cable Diameter Ranges
- Mounting
- Consult the Factory for Mounting Recommendations
- Product Line
- Pass & Seymour
Special FeaturesSplit lace support grips are designed for loads up to 600 lbs. and vertical runs of no more than 100 ft. They are available in a variety of eye styles and cable ranges for supporting electrical and fiber optic cable, metal rods, and tubing. Split lace support grips are used when the end of the cable cannot easily be accessed and the support grip is intended for permanent installation. Support grips are woven of corrosion-resistant tinned-bronze wire.
TypeSupport Grip
Mesh Length10.0 in
Maximum Cable Range0.5 in
Application SectorIndustrial
Cable Diameter Range0.500-0.620 in
StandardUL/CSA Approval (consult factory)
ConstructionVarious Types of Pulling, Support and Strain Relief Grips
