Pass & Seymour FS062UU Flexcor® Standard Duty Support Grips, 0.62-0.74 Inch Cable Diameter, 1150 lbs Break Strength
Pass & Seymour FS062UU Flexcor® Standard Duty Support Grips, 0.62-0.74 Inch Cable Diameter, 1150 lbs Break Strength
- MPN: FS062UU
- UPC: 785007984514
- PPN: P-S-FS062UU
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$76.46/ EA
Description

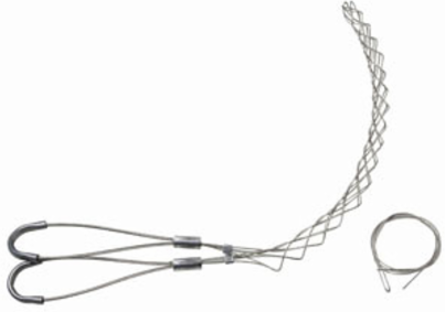

FS062UU: Standard Duty, Split Lace, Double-Eye, Cable Diameter 0.62 - 0.74 inches, Bale Length 4-in, Mesh Length 11-in, Break Strength 1150 lbs.
Features
- Split lace support grips are used when the end of the cable cannot easily be accessed and the support grip is intended for permanent installation.
- Split lace support grips are designed for loads up to 600 lbs.
- Vertical runs of no more than 100 ft.
- They are available in a variety of eye styles and cable ranges for supporting electrical and fiber optic cable, metal rods, and tubing.
- Support grips are woven of corrosion-resistant tinned-stainless steel wire.
- Most Flexcor products have UL and/or CSA approvals. Please contact factory for approval information.
- Bale Length: 4: Mesh Length: 11
Specifications
Specifications
- Country of Origin
- Mexico
- Special Features
- Split lace support grips are designed for loads up to 600 lbs. and vertical runs of no more than 100 ft. They are available in a variety of eye styles and cable ranges for supporting electrical and fiber optic cable, metal rods, and tubing. Split lace support grips are used when the end of the cable cannot easily be accessed and the support grip is intended for permanent installation. Support grips are woven of corrosion-resistant tinned-bronze wire.
- Type
- Support Grip
- Mesh Length
- 10.0 in
- Maximum Cable Range
- 0.62 in
- Application Sector
- Industrial
- Cable Diameter Range
- 0.630-0.740 in
- Standard
- UL/CSA Approval (consult factory)
- Construction
- Various Types of Pulling, Support and Strain Relief Grips
Product LinePass & Seymour
Eye StyleDouble
Indoor/OutdoorBoth
Mesh TypeSplit Lace
Minimum Cable Range0.74 in
Approximate Break Strength790.0 lb
CapacityVarious Cable Diameter Ranges
MountingConsult the Factory for Mounting Recommendations
