Hubbell Wiring Device-Kellems 02202051 Universal Eye Support Grip, Split Mesh, Tin-Coated Bronze, 0.63-0.74 Inch, 790 lb Breaking Strength

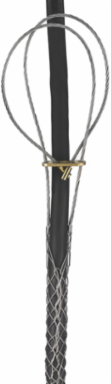

Universal Eye Support Grip, Split Mesh, Tin-Coated Bronze, 0.63-0.74 Inch, 790 lb Breaking Strength
Universal Eye Support Grip, Split Mesh, Tin-Coated Bronze, 0.63-0.74 Inch, 790 lb Breaking Strength
  • MPN: 02202051
  • UPC: 783585302584
  • PPN: HBL-02202051
  • UNSPSC: 39121719

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$133.94/ EA

Description

Support Grips, Universal Eye, Single Weave, Split Mesh, Lace Closing, Tin-Coated Bronze, 0.63-0.74"

Features

  • Universal eye
  • Strand equalizers position wires for equal loading throughout grip length
  • Eye assemblies provide eye reinforcement at support hardware
  • Split Mesh- Lace Closing

Specifications

Certifications

EU RoHS Indicator
Yes

Specifications

Approx Breaking Strength
790 lb.
Country of Origin
US
Each - Width
1.800 in
Performance
Mechanical - Approximate Breaking Strength - 790 (3,514);Mechanical - Working Load - 79 (351.4) Lbs. (N)
Cable Size
.63"-.74" (1.60-1.88)
Standard
CSA Certified
Style
Split Mesh, Lace Closing
Description - Invoice
UNI EYE, SUP GRIP, .63-.74"; GALV, LACE
Harmonization Code
7419805050
MSDS Flag
No
Material - Mounting Hardware
Screw Hook or Beam Clamp
Material
Bronze, Tin Coated
Base Unit of Measure
EA
Carton - Gross Weight per Pack
2.000 lb.
Carton - Pack Description
Carton
Carton - Total Units
10 EA
Lowest Level UOM
Each
Cable Diameter Range0.63 in-0.74 in
Width1.800 in
Industry Standard(s)CSA Certified
ApplicationUniversal Eye
Special FeaturesSplit Mesh- Lace Closing
TypeUniversal Eye
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA52A480
ConstructionWoven
SeriesStandard Duty Series
BOX SIZE4.000x32.000x4.000 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585302584
Each - Pack DescriptionEach
