Hubbell Wiring Device-Kellems

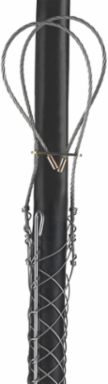

Hubbell Wiring Device-Kellems 02203068 Universal Eye Support Grip, Split Mesh, 1.00-1.24 Inch, Tin-Coated Bronze

Universal Eye Support Grip, Split Mesh, 1.00-1.24 Inch, Tin-Coated Bronze
Universal Eye Support Grip, Split Mesh, 1.00-1.24 Inch, Tin-Coated Bronze
  • MPN: 02203068
  • UPC: 783585303468
  • PPN: HBL-02203068
  • UNSPSC: 39121719

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$203.89/ EA

Description

Support Grips, Universal Eye, Split Mesh, Rod Closing, Tin-Coated Bronze, 1.00-1.24"

Features

  • Universal eye
  • Strand equalizers position wires for equal loading throughout grip length
  • Eye assemblies provide eye reinforcement at support hardware
  • Split Mesh- Rod Closing

Specifications

Specifications

Approx Breaking Strength
1,610 lb.
Country of Origin
US
Each - Width
1.500 in
Performance
Mechanical - Approximate Breaking Strength - 1,610 (7,161);Mechanical - Working Load - 161 (716.1) Lbs. (N)
Cable Size
1.00"-1.24" (2.54-3.15)
Standard
CSA Certified
Style
Split Mesh, Rod Closing
Description - Invoice
UNI EYE, SUP GRIP, 1.0-1.2"; GALV, ROD
Harmonization Code
7419805050
MSDS Flag
No
Material - Mounting Hardware
Screw Hook or Beam Clamp
Material
Bronze, Tin Coated
Base Unit of Measure
EA
Carton - Gross Weight per Pack
5.000 lb.
Carton - Pack Description
Carton
Carton - Total Units
10 EA
Lowest Level UOM
Each
Cable Diameter Range1 in-1.24 in
Width1.500 in
Industry Standard(s)CSA Certified
ApplicationUniversal Eye
Special FeaturesSplit Mesh- Rod Closing
TypeUniversal Eye
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA52A480
ConstructionWoven
SeriesStandard Duty Series
BOX SIZE12.875x32.625x18.625 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585303468
Each - Pack DescriptionEach

Certifications

EU RoHS Indicator
Yes
