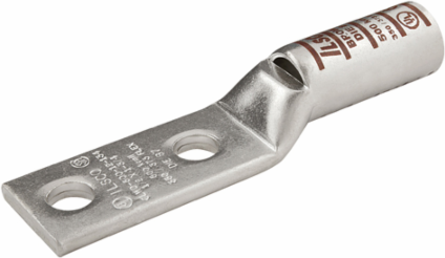

ILSCO CLWD-6-10-1116 Surecrimp Copper Compression Lug, Conductor Size 6, 2 Holes, #10 Bolt Size, 11/16in Hole Spacing, Long Barrel, Sight Window, Tin Plated, UL, CSA
- MPN: CLWD-6-10-1116
- UPC: 783669629279
- PPN: ILC-CLWD-6-10-1116
- UNSPSC: 39121448
CAD
$19.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Surecrimp Copper Compression Lug, Copper material, Tin plated connector,Long barrel, standard tang, 2 mounting hole(s), mounting bolt/stud size #10 in, mounting hole spacing 0.687 in., UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, 180° connecting angle, Copper Primary Conductor 6 Sol, 6 Str, sight window, Square tang end, flex conductor range 6 G,H,I,K,M,DLO, rated for 35 kV, die color code Blue, primary color Silver, die index I-24,
Documentation & Downloads
Specifications
Key Specifications
- UPC Code
- 78366962927
- Dual Rated
- FALSE
- Conductor Range CU Solid (Primary, run, main, line)
- 6 Sol
- Flex Conductor Range
- 6 G,H,I,K,M,DLO
- Flex Conductor Size (Class H)
- 6 H
- Flex Conductor Size (Class K)
- 6 K
- Flex Conductor Size (Class DLO)
- 6 DLO
- Length (mm)
- 65.278
- Width (mm)
- 11.176
- Height (mm)
- 8.7122
- Barrel Length (IN)
- 1.125
- Dimension G (IN)
- 0.258
- Inside Diameter (IN)
- 0.225
- Mounting Bolt/Stud Size (mm)
- 254
- Mounting Hole Diameter (mm)
- 5.5626
- Mounting Hole Spacing (mm)
- 17.4498
- Outside Diameter (mm)
- 7.9502
- Tang Length (IN)
- 1.25
- Tang Thickness (IN)
- 0.087
- Tang Width (IN)
- 0.44
- Material
- Copper
- Connector Finish
- Tin
- Die Color Code
- Blue
- Temperature Rating
- 90°C
- CSA File Number
- LR-29601
- UL Control Number
- 453G
- UL / CULUS Specification
- UL 486A/B Listed,UL 467 Listed
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- Barrel Type
- Long
- Connecting angle
- 180°
- Contains DE-OX
- FALSE
- Flared End
- FALSE
- Narrow Tang
- FALSE
- Sight Window
- TRUE
- Tang End Shape
- Square
- Bag Quantity
- 1
UNSPSC Code39121448
Conductor Range CU Stranded (Primary, run, main, line)6 Str
Conductor Size CU (Primary, run, main, line)6 Sol,6 Str
Flex Conductor Size (Class G)6 G
Flex Conductor Size (Class I)6 I
Flex Conductor Size (Class M)6 M
Length (IN)2.57
Width (IN)0.44
Height (IN)0.343
Weight (LB)0.028260742
Barrel Length (mm)28.575
Dimension G (mm)6.5532
Inside Diameter (mm)5.715
Mounting Hole Diameter (IN)0.219
Mounting Hole Spacing (IN)0.687
Outside Diameter (IN)0.313
Strip Length (mm)30.1498
Tang Length (mm)31.75
Tang Thickness (mm)2.2098
Tang Width (mm)11.176
Conductor MaterialCopper
ColorSilver
Direct BurialTRUE
Voltage Rating35 kV
CSA StandardC22.2 No. 65-03
UL File NumberE6207
NEBS RatingLevel 3
Barrel MarkingInk
ConnectionCompression
Conductor TypeSolid,Stranded,Flex
ILSCOs Die Catalog NumberILD-24
Mounting Hole TypeThru
Number of Mounting Holes2
SlottedFALSE
UndrilledFALSE
CrossSellILD-24, DE-OX-8OZ, TB-6DF1000-P
