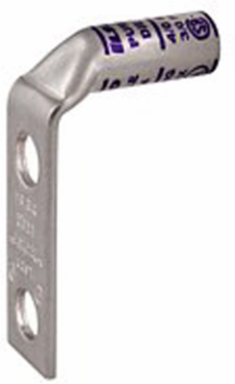

ILSCO CLNB-8-10-58-9 Surecrimp Copper Compression Lug, Conductor Size 8, 2 Holes, #10 Bolt Size, 5/8in Hole Spacing, Long Barrel, No Sight Window, 90° Bent Tang, Tin Plated, UL, CSA
- MPN: CLNB-8-10-58-9
- UPC: 783669652130
- PPN: ILC-CLNB-8-10-58-9
- UNSPSC: 39121448
CAD
$27.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Surecrimp Copper Compression Lug, Copper material, Tin plated connector,Long barrel, standard tang, 2 mounting hole(s), mounting bolt/stud size #10 in, mounting hole spacing 0.625 in., UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, 90° connecting angle, Copper Primary Conductor 8 Sol, 8 Str, Contains DE-OX®, no sight window, Square tang end, flex conductor range 8 G,H,I,K,M,DLO, rated for 35 kV, die color code Red, primary color Silver, die index I-21,
Documentation & Downloads
Specifications
Key Specifications
- UPC Code
- 78366965213
- Dual Rated
- FALSE
- Conductor Range CU Solid (Primary, run, main, line)
- 8 Sol
- Flex Conductor Range
- 8 G,H,I,K,M,DLO
- Flex Conductor Size (Class H)
- 8 H
- Flex Conductor Size (Class K)
- 8 K
- Flex Conductor Size (Class DLO)
- 8 DLO
- Length (mm)
- 30.6578
- Width (mm)
- 9.4996
- Height (mm)
- 42.3672
- Barrel Length (IN)
- 0.812
- Dimension G (IN)
- 0.258
- Inside Diameter (IN)
- 0.179
- Mounting Bolt/Stud Size (mm)
- 254
- Mounting Hole Diameter (mm)
- 5.5626
- Mounting Hole Spacing (mm)
- 15.875
- Outside Diameter (mm)
- 6.9342
- Tang Length (IN)
- 1.25
- Tang Thickness (IN)
- 0.094
- Tang Width (IN)
- 0.374
- Material
- Copper
- Connector Finish
- Tin
- Die Color Code
- Red
- Voltage Rating
- 35 kV
- CSA Standard
- C22.2 No. 65-03
- UL File Number
- E6207
- NEBS Rating
- Level 3
- Barrel Marking
- Hard
- Connection
- Compression
- Conductor Type
- Solid,Stranded,Flex
- ILSCOs Die Catalog Number
- ILD-21
- Mounting Hole Type
- Thru
- Number of Mounting Holes
- 2
- Slotted
- FALSE
- Undrilled
- FALSE
- CrossSell
- ILD-21, DE-OX-8OZ, TB-6DF1000-P
UNSPSC Code39121448
Conductor Range CU Stranded (Primary, run, main, line)8 Str
Conductor Size CU (Primary, run, main, line)8 Sol,8 Str
Flex Conductor Size (Class G)8 G
Flex Conductor Size (Class I)8 I
Flex Conductor Size (Class M)8 M
Length (IN)1.207
Width (IN)0.374
Height (IN)1.668
Weight (LB)0.024040331
Barrel Length (mm)20.6248
Dimension G (mm)6.5532
Inside Diameter (mm)4.5466
Mounting Hole Diameter (IN)0.219
Mounting Hole Spacing (IN)0.625
Outside Diameter (IN)0.273
Strip Length (mm)22.1996
Tang Length (mm)31.75
Tang Thickness (mm)2.3876
Tang Width (mm)9.4996
Conductor MaterialCopper
ColorSilver
Temperature Rating90°C
CSA File NumberLR-29601
UL Control Number453G
UL / CULUS SpecificationUL 486A/B Listed,UL 467 Listed
Prop65 ComplianceThis product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
Barrel TypeLong
Connecting angle90°
Contains DE-OXTRUE
Flared EndFALSE
Narrow TangFALSE
Sight WindowFALSE
Tang End ShapeSquare
Bag Quantity1
