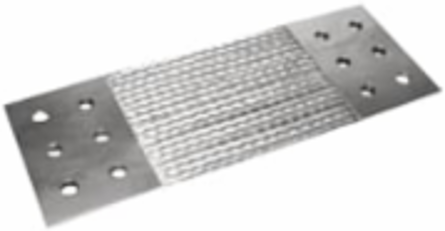

Blackburn LTL300D2356 Flexible Braid Connector - Large Transformer Links, 356 mm Length, Tin-Plated Copper
- MPN: LTL300D2356
- UPC: 783786332366
- PPN: T-B-LTL300D2356
- UNSPSC: 39121465
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Tinned Copper, Standard Flexible Braid Connector, LTL Series - Large Transformer Links, Pad A - 6-Hole Pad with 11/16 inch (14.3 mm) Holes and 2 inch (50.8 mm) Spacing Center to Center, and Pad B - 6-Hole Pad with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center, 14 inch (356 mm) long, 6 inch (152.4 mm) wide, 3/8 inch (9.5 mm) thick. Pads 6 inch x 4 inch. 30 AWG Individual Strand.
Specifications
Additional Information
| Application | Large Transformer Links |
|---|---|
| Cable Length | 356 mm |
| Conductor Shape | Flat |
| Material of Conductor | Tin-Plated Copper |
| Product Type | Large Transformer Link Connector - 6-Hole |
| Standards | IEEE / ANSI C37, 34 |
| Brand / Label | Boreal |
|---|---|
| Conductor Category | Flexible |
| Effective Date | 20111021 |
| Product Name | FLEX BRAID |
| Special Functions | 6 Hole Pads |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4695 >> Flexible braid |
|---|
