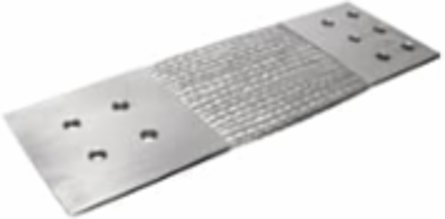

Blackburn SWF200A1406 Standard Flexible Braid Connector - Tin-Plated Copper, 16 Inch Long, 6-Hole to 4-Hole
- MPN: SWF200A1406
- UPC: 075114305785
- PPN: T-B-SWF200A1406
- UNSPSC: 39121465
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Tinned Copper, Standard Flexible Braid Connector, SWF Series, 6/4 Hole Pads. Pad A with NEMA Standard (6) 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center, Pad A 4.75 inch x 5.75 inch, Pad B with (4) 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center Pad B 4.75 inch x 4 inch. 16 inch (406 mm) long, 4.75 inch (120.65 mm) wide, 1/4 inch (6.3 mm) thick. 30 AWG Individual Strand.
Specifications
Additional Information
| Application | Suitable for connecting Transformer Links or Switchgear. |
|---|---|
| Cable Length | 406 mm |
| Conductor Shape | Flat |
| Material of Conductor | Tin-Plated Copper |
| Product Type | Standard Flexible Braid Connector - 6-Hole to 4-Hole |
| Standards | IEEE/ANSI C37.34 |
| Brand / Label | Boreal |
|---|---|
| Conductor Category | Flexible |
| Effective Date | 20160606 |
| Product Name | ELECTRICAL FLEX BRAID |
| Special Functions | Tin Plated for High Conductivity and Corrosion Resistance. One 6-Hole and One 4-Hole NEMA Pad |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4695 >> Flexible braid |
|---|
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
