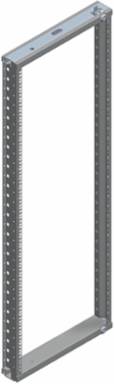

Schneider Electric NSYRSW640 19 Inch Swing Rack 2000x600 mm - 40 Modules, Steel, 3 kg Load Capacity
Schneider Electric NSYRSW640 19 Inch Swing Rack 2000x600 mm - 40 Modules, Steel, 3 kg Load Capacity
- MPN: NSYRSW640
- PPN: SCH-NSYRSW640
- UNSPSC: 39121327
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$858.74/ EA
Description
Spacial SF / SM swing rack 19 inches without panels. 2000 x 600 mm. 40 modules, adjustable in depth 25mm pitch. Opening system with handle, opening angle 120°. 5mm double bar lock. Steel made, zinc coated surface finish. Grey RAL 7035. Maximum load is 3 kg per unit.
Features

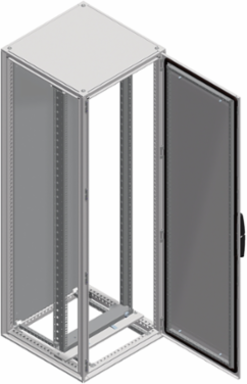

- To be coupled to enclosures with widths of 600 mm.
- Can be moved depthwise with a pitch of 25 mm.
- Reversible opening direction: Left/right.
- Locking system, top and bottom, with 5-mm double-bar key.
- Maximum opening: 130°.
- Maximum equipment installation depth: 180 mm.
- Not compatible with 120° mechanical retainer NSYRCDR12 Fixing to the enclosure structure: PanelSet SF:
- Fixing to the enclosure structure. PanelSet SM:
- Fixing to the enclosure on top/bottom adjustment rails. Components:
- Zinc-coated steel central structure.
Specifications
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Carbon Footprint
- 131.5386694
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-03-30
- Psr Version
- PSR-0005-ed2-2016 03 29
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1109023EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Enclosure Nominal Dimensions
- -, -
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 43 kg CO2 eq., 43.49068067
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 80 kg CO2 eq., 80.38469161
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Device Application
- electronic application
- Energy Efficiency Optimized
- False
- Lock Type
- lock 5 mm double bar
- Mounting Location
- on structure of enclosure
- Package Weight Lbs
- 18.5 kg
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Rack Type
- swing
- Returnability
- No
- Sustainable Packaging
- No
- Accessory Separate Part Category2
- mounting accessory
- Stocking Flag
- Y
- Pep Code
- ENVPEP1109023EN
- Pep Verification Date
- 2023-03-30
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Adjustment
- adjustable in depth every 25 mm
- Rack Coverage
- complete
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase A43.561218276, 4 kg CO2 eq.
Carbon Footprint Of The Installation Phase A54.102078873, 4 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2025-07-10
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Device Composition1 rack
Fixing Modeby fixing element
Materialsteel
Mounting Support19" swing rack support
Permanent Permissible Load3 kg per unit
Product Or Component Type19" rack
RangePanelSeT
Surface Finishzinc coated
Total Lifecycle Carbon Footprint132 kg CO2 eq.
Medium DescSpacial SF/SM 19" swing rack - 2000x600 mm - 40 modules
Product Kit IdentifierN
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
Energy Model Manufacturing A1 A3 2Electricity Mix; Production mix; Low voltage; FR
Enclosure Cubicle Descriptionfloor-standing enclosure
Opening Of The 19 Racks2reversible 120 °
Opening Of The 19 Racks5reversible 120 °
General Attributes
- Product Or Component Type
- 19" rack
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
