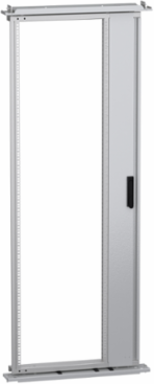

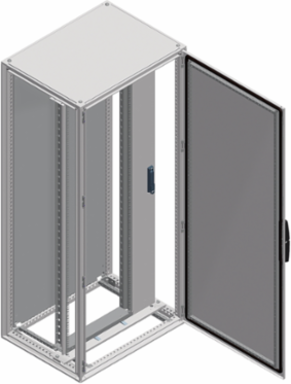

Schneider Electric NSYRSW40 19 Inch Swing Rack 2000 x 800 mm, 40 Modules, Steel, Zinc Coated
- MPN: NSYRSW40
- PPN: SCH-NSYRSW40
CAD
$1663.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Spacial SF / SM swing rack off-centered 19 inches. 2000 x 800 mm. 40 modules, adjustable in depth 25mm pitch. Opening system with handle, opening angle 120°. Ball lock type in handle. Steel made, zinc coated surface finish. Grey RAL 7035. Maximum load is 3 kg per unit.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Argentina, Spain |
|---|---|
| Width | 31.5 in |
| Height | 78.74 in |
|---|---|
| Depth | 1901 mm |
Physical Attributes
| Color | side plate Gray RAL 7035) |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Device Composition | fixing elements2 800 mm swing rack supports1 hinged rack, 1 side lid with handle |
| Carbon Footprint Of The Distribution Phase [A4] | 5.648092185, 6 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 6.505897092, 7 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-04-15 |
| Stocking Flag | Y |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Application | electronic application |
| Fixing Mode | by fixing element |
| Material | steel |
| Permanent Permissible Load | 3.75 kg per unit with a maximum of 150 kg |
| Product Or Component Type | 19" rack |
| Rack Coverage | complete |
| Rack Type | swing |
| Returnability | No |
| Surface Finish | zinc coated |
| Total Lifecycle Carbon Footprint | 209 kg CO2 eq. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; FR |

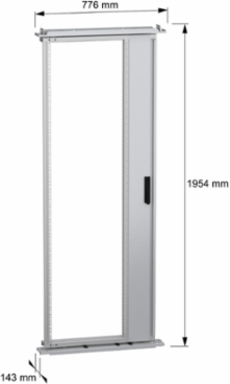

| Height Nominal | 2000 mm |
| Width Nominal | 800 mm |
| Accessory / Separate Part Category | mounting accessory |
| Opening Of The 19" Racks | reversible 120 ° |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 9403999045 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Enclosure Nominal Dimensions | - H: 2000 mm, - H: 2000 mm, - H: 2000 mm, - H: 2000 mm |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 69 kg CO2 eq., 68.97621955 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 127 kg CO2 eq., 127.4901209 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1916 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Adjustment | adjustable in depth every 25 mm |
| Energy Efficiency Optimized | False |
| Lock Type | handle with ball lock |
| Mounting Location | on structure of enclosure |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Quantity Per Set | set of 1 |
| Rack Position | off-centered |
| Range | PanelSeT |
| Software Version | v5.9.4 |
| Sustainable Packaging | No |
| Pep Code | ENVPEP1109023EN |
| Pep Verification Date | 2023-03-30 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Recyclability Potential In % | 98 |
| Height Useful | 2000 mm |
| Width Real | 800 mm |
| Enclosure/Cubicle Description | floor-standing enclosure |
| Number Of Units 19" | 40 |
| Package Weight(Lbs) | 26.000 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 208.6203297 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1109023EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1109023EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-03-30 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | 19" rack |
|---|
ETIM
| ETIM 8 | EC002620 |
|---|
| ETIM 9 | EC002620 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
