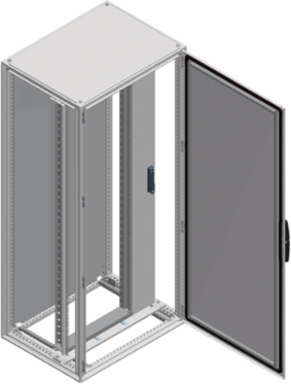

Schneider Electric NSYRSWC40 19 Inch Swing Rack 2000x800 mm, 40 Modules, Zinc Coated, Max Load 3.75 kg
Schneider Electric NSYRSWC40 19 Inch Swing Rack 2000x800 mm, 40 Modules, Zinc Coated, Max Load 3.75 kg
- MPN: NSYRSWC40
- PPN: SCH-NSYRSWC40
- UNSPSC: 39121327
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1152.28/ EA
Description

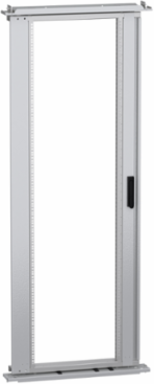

Spacial SF / SM swing rack centered 19 inches. 2000 x 800 mm. 40 modules, adjustable in depth 25mm pitch. Opening system with handle, opening angle 120°. Ball lock type in handle. Zinc coated surface finish. Grey RAL 7035. Maximum load is 3 kg per unit.
Features
- To be coupled to enclosures with widths of 800 mm.
- Can be moved depthwise with a pitch of 25 mm.
- Reversible opening direction: Left/right.
- Locking system, top and bottom, with 5-mm double-bar key.
- Maximum opening: 130° (option of opening to 180° using 180° hinges).
- Material: Zinc-coated steel and steel painted
- Maximum load: 3.75 kg/unit with a max of 150 kg Installation
- PanelSet SF - SM
- Other mounting options: Consult us Maximum equipment installation depth:
- Off-center 19" swing rack: 470 mm
Specifications
Physical Attributes
- Color
- side plate Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition

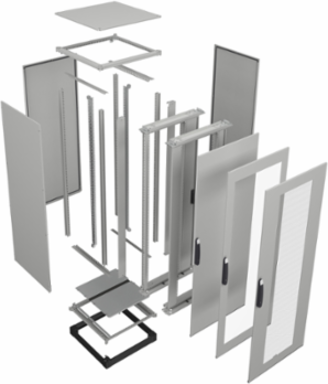

- fixing elements, 2 800 mm swing rack supports, 1 19" swing rack, 2 side plates with ball-lock handle
- Carbon Footprint Of The Distribution Phase A4
- 5.58245027, 6 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 6.430285801, 6 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2025-07-10
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- Y
- Function Option
- Standard
- Energy Efficiency Optimized
- False
- Lock Type
- handle with ball lock
- Mounting Location
- on structure of enclosure
- Permanent Permissible Load
- 3.75 kg per unit with a maximum of 150 kg
- Product Or Component Type
- 19" rack
- Rack Type
- swing
- Returnability
- Yes
- Sustainable Packaging
- No
- Accessory Separate Part Category2
- mounting accessory
- Stocking Flag
- N
- Pep Code
- ENVPEP1109023EN
- Pep Verification Date
- 2023-03-30
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Adjustment
- adjustable in depth every 25 mm
- Rack Coverage
- complete
- Opening Of The 19 Racks2
- reversible 120 °
- Opening Of The 19 Racks5
- reversible 120 °
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial

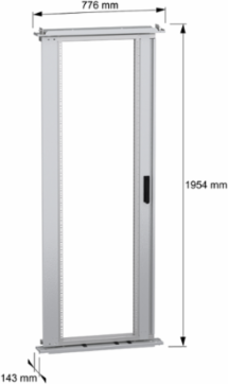

Enclosure Nominal Dimensions- H: 2000 mm, - H: 2000 mm, - H: 2000 mm, - H: 2000 mm
Carbon Footprint Of The End Of Life Phase C1 To C468 kg CO2 eq., 68.17458052
Carbon Footprint Of The Manufacturing Phase A1 To A3126 kg CO2 eq., 126.0084355
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Device Applicationelectronic application
Fixing Modeby fixing element
Materialsteel
Package Weight Lbs28.000 kg
Product AvailabilityStock - Normally stocked in distribution facility
Quantity Per Setset of 1
RangePanelSeT
Surface Finishzinc coated
Total Lifecycle Carbon Footprint206 kg CO2 eq.
Medium DescSpacial SF/SM 19" swing rack - 2000x800 mm - 40 modules
Product Kit IdentifierN
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
Energy Model Manufacturing A1 A3 2Electricity Mix; Production mix; Low voltage; FR
Enclosure Cubicle Descriptionfloor-standing enclosure
Rack Positioncentered
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Carbon Footprint
- 206.1957521
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-03-30
- Psr Version
- PSR-0005-ed2-2016 03 29
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1109023EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- 19" rack
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 1901 mm
