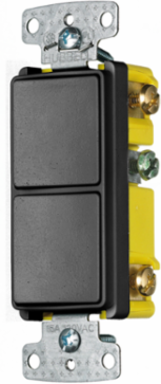

Bryant RCD101BK Decorator Combination Device 15A, 120V AC, 2 Single Pole Rockers, Side Wired
- MPN: RCD101BK
- UPC: 883778110245
- PPN: HBL-RCD101BK
- UNSPSC: 39122226
CAD
$33.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Combination Devices, Residential Grade, Decorator Series, Two Single-Pole Rockers, 15A 120V AC, Side Wired
Features
- Smooth, quiet rocker
- Low profile, less than 1 inch deep
- Self-grounding feature is standard
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 2.670 in
- Performance
- Electrical - Dielectric voltage - Withstands 1,500V AC minimum for 1 minute;Electrical - Endurance - 30,000 cycles minimum;Electrical - Max. working voltage - 120V;Electrical - Overload - 1.5 times rating;Environmental - Flammability - UL V0;Environmental - Operating temperatures - Maximum continuous 60°C;minimum -20°C (without impact);Mechanical - Terminal accommodation - Back and side wire: #14 AWG min. - #12 AWG max. solid and stranded copper wire only;push wire: #14 AWG solid copper wire only
- Actuator
- Rocker
- Application
- Residential
- Contact Rating
- 15A
- Number of Poles
- 2) Single Pole
- Operating Temperature
- Max Continuous- 60 Degrees C, Minimum- -20 Without Impact
- Standard
- CSA Certified;UL Listed E3896
- Wattage
- 4155
- Connectivity
- Side Wired
- Number Of Poles
- 2) Single Pole
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Material - Mounting Hardware
- Mounting Screws
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.6 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 8.500 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 44.100 in
- Pallet Weight
- 1224.000 lb.
Current / Amperage Rating15 A
Industry Standard(s)CSA Certified;UL Listed E3896
ActionSnap Switch
Amperage Rating15 A
Contact ConfigurationTwo Position
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Operating Cycles30,000 Minimum
Special FeaturesStandard Product
Voltage Rating120/277V AC kV
Voltage Rating Description120/277V AC kV
Display SizeStandard Size
Description - InvoiceCOMBO, 2) 15A SP ROCKER, BK
Harmonization Code8536509040
MSDS FlagNo
Current Rating15 A
BOX SIZE2.500x9.000x4.400 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack883778110245
Case - Total Units50 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70883778110244
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
