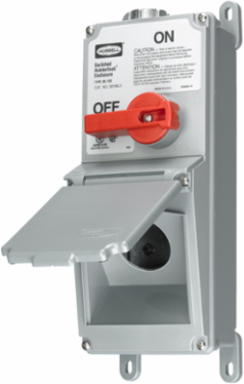

Hubbell Wiring Device-Kellems SEHBL3 Industrial Grade Switched Enclosure with 30A Hubbellock, Gray, 5.6 Inch Width
- MPN: SEHBL3
- UPC: 783585006000
- PPN: HBL-SEHBL3
- UNSPSC: 39122205
CAD
$748.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Switches and Lighting Controls, Industrial Grade, Lever Actuated, Switched Enclosure With Receptacle, Three Pole, 30A Hubbellock, 3 Phase 600V AC, Terminal Screws, Gray.
Features
- Accommodates 30-Amp, 4 Wire Hubbellock Receptacle
- Type 3R Rainproof or 12K Dust-tight
- Molded Valox Resists Abuse, Corrosion and Enhances Safety
- Lockable Handle Meets OSHA Lockout Requirements
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Poland |
|---|---|
| Width | 5.600 in |
| Performance | 600V RMS - Electrical - Operations;Electrical - Current Interrupting - Certified for current interrupting at full rated current and voltage;Electrical - Dielectric Voltage - Withstands 3,000V minimum;Electrical - Environmental - Max. Working Voltage;External fully adjustable feet - Mechanical - Product Identification;Identification and ratings are part of external label and receptacle face - Mechanical - Terminal Identification;In accordance with UL 746C - Mechanical - Mounting;In accordance with UL, CSA and international conventions - Environmental - Flammability;IP54 suitability - Environmental - Operating Temperature;Maximum continuous +75°C Minimum continuous -40°C - Environmental - UV Resistance;Mechanical 10,000 cycles;Electrical 6,000 cycles - Mechanical - Impact Resistance;UL94 – 5 VA and V0 classification - Environmental - Moisture Resistance |
| Standard | CSA Certified Type 3R and 12K Enclosure Rating;Listed to UL Standard |
| Weight | 3.8 lb. |
| General Literature Asset 2 Display Text | Circuit-Lock® Motor Disconnects |
| Style | For Hubbellock devices |
| Class Code | A16 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A16A260 |
| BOX SIZE | 4.700x12.100x5.600 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585006000 |
| Case Weight | 3.750 lb. |
| Lowest Level UOM | Each |
| Color | Gray |
|---|---|
| Industry Standard(s) | CSA Certified Type 3R and 12K Enclosure Rating;Listed to UL Standard |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Type | Switched Enclosure |
| General Literature Asset 1 Display Text | Circuit-Lock® Rounded Sloped Top Motor Disconnects |
| Dielectric Strength | Withstands 3,000V minimum |
| Wire Size | #10 AWG |
| Description - Invoice | SWITCHED ENCLOSURE, HUBBELLOCK |
| Harmonization Code | 8536509025 |
| MSDS Flag | No |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 3.750 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 |
| Each - Pack Description | Each |
| NAICS Code | 335931A102 |
