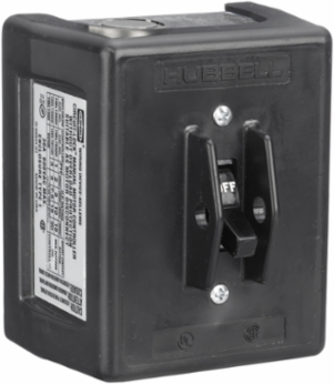

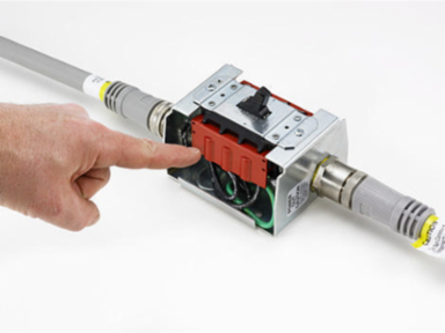

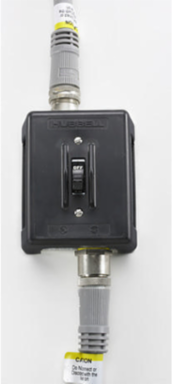

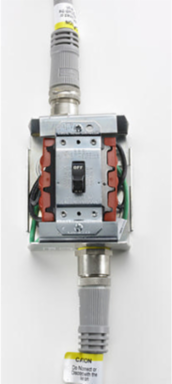

Hubbell Wiring Device-Kellems HBL1392 Circuit-Lock NEMA 1 Enclosure Toggle Switch Disconnect 30A 600V
- MPN: HBL1392
- UPC: 783585680927
- PPN: HBL-HBL1392
- UNSPSC: 39121521
CAD
$160.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Circuit-Lock® NEMA 1 Enclosure Toggle Switch Disconnect, 2-Pole, 30A 600V AC, Thermoplastic
Features
- Thermoplastic cover on a plated steel base
- Durable, non-conductive cover
- Wiring conduit knockouts
- ½" and ¾" NPT
- Top, bottom or back wire entry points
- Surface mount control
- Switch can be locked in the OFF position as a method of compliance with OSHA lockout/tagout
- Standard Product
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Current / Amperage Rating | 30 A |
| Height | 3.43 in |
| Industry Standard(s) | CSA-C22.2 No.14 Industrial Control File LR-46186;UL 508, Industrial Control File #E70402 |
| Performance | Electrical - Dielectric Voltage - Min. 2,200V AC minimum for 1 minute;Electrical - Electrical Life - Min. 6,000 Cycles at rated switch load;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94HB/VO;Environmental - Operating Temperature - Max. 75°C,Min. -40°C continuous w/o impact;Mechanical - Mechanical Life - Min. 10,000 minimum cycles;Mechanical - Switch Rating - 25 inch pounds;Mechanical - Terminal Accommodations - #10 AWG Max;Mechanical - Terminal Torque - 20 inch pounds;Mechanical - Wire Type - Solid and stranded copper wire only |
| Current Rating | 30 |
| Size | 4.52 in x 3.97 in x 3.43 in |
| Standard | CSA-C22.2 No.14 Industrial Control File LR-46186;UL 508, Industrial Control File #E70402 |
| Weight | 1.5 lb. |
| Engineering Drawing 1 Display Text | HBL1392 AutoCAD Drawing |
| General Literature Asset 2 Display Text | Circuit-Lock® Rounded Sloped Top Motor Disconnects |
| Amperage Rating | 30 A |
| Dielectric Strength | 2,200V AC minimum for 1 minute |
| Environmental Conditions | Indoor and Outdoor |
| Operating Cycles | 10,000 Cycles Minimum |
| Style | Standard Duty |
| Class Code | A16 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | 1392;HBL1392;HBL1392BW |
| Material - Mounting Hardware | Screw Mounting |
| Series | Non-Fused |
| BOX SIZE | 4.900x20.500x10.000 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585680927 |
| Each - Pack Description | Each |
| NAICS Code | 3353146111 |
| Color | Black |
|---|---|
| Dimensions | 4.52 in x 3.97 in x 3.43 in |
| Horsepower - Maximum | 15 |
| Length | 4.52 in |
| Application | Standard Toggle |
| Enclosure Type | NEMA 1 |
| Special Features | Standard Product |
| Type | Disconnect Switches |
| Width | 3.97 in |
| General Literature Asset 1 Display Text | Safety Product Guide |
| General Literature Asset 3 Display Text | Circuit-Lock® Motor Disconnects |
| Connectivity | Pressure Terminal Screws |
| Display Size | Standard Sized Product |
| Load Capacity | Inductive |
| Phase | Single Phase |
| Wattage | 18000 W |
| Description - Invoice | 30A 600V 2P DISC SW W/NEMA 1 PLAS |
| Harmonization Code | 8536509040 |
| MSDS Flag | No |
| Sub Class Code | A16A240 |
| Construction | Fabricated |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 16 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Lowest Level UOM | Each |
