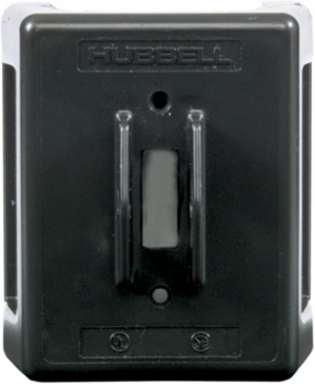

Hubbell Wiring Device-Kellems HBL1390 Industrial Grade Toggle Motor Disconnect Switch, NEMA 1, 30A, 4.52 x 3.97 x 3.43 Inch
- MPN: HBL1390
- UPC: 783585017020
- PPN: HBL-HBL1390
- UNSPSC: 39121521
CAD
$56.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Switches and Lighting Controls, Industrial Grade, Toggle Switches, Motor Disconnects, Non-Metallic NEMA 1 Enclosure, For 30A Devices , Black
Features
- All Aluminum Cover and Base
- Top, bottom or back wire entry points
- Base is pre-drilled for rear surface mounting
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL1390 AutoCAD Drawing
- General Literature Asset 2 Display Text
- Pulp & Paper Solutions
- Country of Origin
- United States
- Height
- 3.43 in
- Industry Standard(s)
- UL Listed
- Performance
- Environmental - Operating Temperatures - Max Continuous- 75 °C, Minimum- -40 °C w/o Impact
- Current Rating
- 30
- Size
- 4.52 in x 3.97 in x 3.43 in
- Standard
- UL Listed
- Weight
- 1.05 lb.
- Amperage Rating
- 30 A
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Class Code
- A16
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 1390
- Series
- Non-Fused
- BOX SIZE
- 5.300x20.400x10.100 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585017020
- Case Weight
- 11.750 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 47.700 in
- Pallet Weight
- 951.750 lb.
- NAICS Code
- 3353146111
General Literature Asset 1 Display TextWiring Device Solutions for Strategic Manufacturing Facilities
General Literature Asset 3 Display TextPULP & PAPER SOLUTIONS
Dimensions4.52 in x 3.97 in x 3.43 in
Horsepower - Maximum20
Length4.52 in
ApplicationFor 30A Switches
Enclosure TypeNEMA 1
Special FeaturesStandard Product
TypeEnclosures without Switch
Width3.97 in
Environmental ConditionsIndoor Only
StyleStandard Duty
Description - InvoiceENCLOSURE, NM NEMA 1
Harmonization Code3926909999
MSDS FlagNo
Sub Class CodeA16A240
Base Unit of MeasureEA
Carton - Gross Weight per Pack11.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585017029
Pallet Length48.000 in
Pallet Width40.000 in
