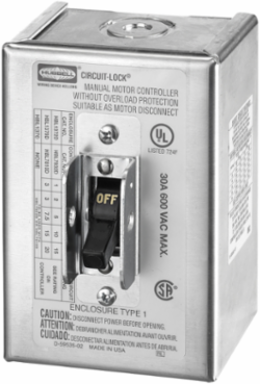

Hubbell Wiring Device-Kellems HBL1372 Circuit-Lock NEMA 1 Disconnect Switch, 2-Pole, 30A, Aluminum, 4.52 Inch x 3.2 Inch x 3.15 Inch
- MPN: HBL1372
- UPC: 783585680897
- PPN: HBL-HBL1372
- UNSPSC: 39121521
CAD
$141.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Circuit-Lock® NEMA 1 Enclosure Toggle Switch Disconnect, 2-Pole, 30A 600V AC, Aluminum
Features
- All aluminum cover and base
- Base is pre-drilled for rear surface mounting
- Wiring conduit knockouts
- ½" and ¾" NPT
- Top, bottom or back wire entry points
- Surface mount control
- Switch can be locked in the OFF position as a method of compliance with OSHA lockout/tagout
- Standard Product
Specifications
Key Specifications
- Country of Origin
- China
- Current / Amperage Rating
- 30 A
- Height
- 3.15 in
- Industry Standard(s)
- CSA-C22.2 No.14 Industrial Control File LR-46186;UL 508, Industrial Control File #E70402
- Performance
- Electrical - Dielectric Voltage - Min. 2,200V AC minimum for 1 minute;Electrical - Electrical Life - Min. 6,000 Cycles at rated switch load;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94HB/VO;Environmental - Operating Temperature - Max. 75°C,Min. -40°C continuous w/o impact;Mechanical - Mechanical Life - Min. 10,000 minimum cycles;Mechanical - Switch Rating - 25 inch pounds;Mechanical - Terminal Accommodations - #10 AWG Max;Mechanical - Terminal Torque - 20 inch pounds;Mechanical - Wire Type - Solid and stranded copper wire only
- Current Rating
- 30
- Size
- 4.52 in x 3.2 in x 3.15 in
- Standard
- CSA-C22.2 No.14 Industrial Control File LR-46186;UL 508, Industrial Control File #E70402
- Weight
- 1.05 lb.
- General Literature Asset 1 Display Text
- Safety Product Guide
- General Literature Asset 3 Display Text
- Circuit-Lock® Motor Disconnects
- Connectivity
- Pressure Terminal Screws
- Display Size
- Standard Sized Product
- Load Capacity
- Inductive
- Phase
- Single Phase
- Wattage
- 18000 W
- Description - Invoice
- 30A 600V 2P DISC SW W/NEMA 1
- Harmonization Code
- 8536509040
- MSDS Flag
- No
- Sub Class Code
- A16A240
- Series
- Non-Fused
- BOX SIZE
- 5.500x18.750x8.100 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585680897
- Case Weight
- 9.080 lb.
- Lowest Level UOM
- Each
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
ColorAluminum
Dimensions4.52 in x 3.2 in x 3.15 in
Horsepower - Maximum20
Length4.52 in
ApplicationStandard Toggle
Enclosure TypeNEMA 1
Special FeaturesStandard Product
TypeDisconnect Switches
Width3.2 in
General Literature Asset 2 Display TextCircuit-Lock® Rounded Sloped Top Motor Disconnects
Amperage Rating30 A
Dielectric Strength2,200V AC minimum for 1 minute
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Operating Cycles10,000 Cycles Minimum
StyleStandard Duty
Class CodeA16
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number1372;HBL1372;HBL1372BW;HBL1372MDS
Material - Mounting HardwareScrew Mounting
Base Unit of MeasureEA
Carton - Gross Weight per Pack11.25 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
Pallet Height49.000 in
Pallet Weight760.000 lb.
NAICS Code3353146111
Certifications
- EU RoHS Indicator
- Yes
