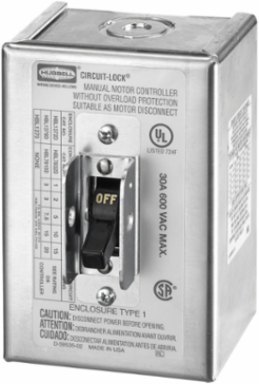

Hubbell Wiring Device-Kellems HBL1370 Industrial Toggle Switch, NEMA 1 Enclosure, 40A 600V AC, 4.52 in x 3.2 in x 3.15 in
- MPN: HBL1370
- UPC: 783585016986
- PPN: HBL-HBL1370
- UNSPSC: 39121521
CAD
$56.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Switches and Lighting Controls, Industrial Grade, Toggle Switches, Motor Disconnect Accessories, NEMA 1 Enclosure Only, 40A 600V AC
Features
- Thermoplastic Cover on a Plated Steel Base
- Top, bottom or back wire entry points
- Durable, non-conductive cover
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
| Engineering Drawing 1 Display Text | HBL1370 AutoCAD Drawing |
|---|---|
| General Literature Asset 2 Display Text | Pulp & Paper Solutions |
| Country of Origin | United States |
| Height | 3.15 in |
| Length | 4.52 in |
| Standards - RoHS Compliance Status | CM |
| Current Rating | 30 |
| Size | 4.52 in x 3.2 in x 3.15 in |
| Standard | UL Listed |
| Weight | 0.6 lb. |
| Amperage Rating | 30 A |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Class Code | A16 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | 1370 |
| Series | Non-Fused |
| BOX SIZE | 5.800x18.800x8.000 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585016986 |
| Case Weight | 6.600 lb. |
| Lowest Level UOM | Each |
| Pallet Height | 46.400 in |
| Pallet Weight | 633.600 lb. |
| NAICS Code | 3353146111 |
| General Literature Asset 1 Display Text | Wiring Device Solutions for Strategic Manufacturing Facilities |
|---|---|
| General Literature Asset 3 Display Text | PULP & PAPER SOLUTIONS |
| Dimensions | 4.52 in x 3.2 in x 3.15 in |
| Industry Standard(s) | UL Listed |
| Performance | Environmental - Operating Temperatures - Max Continuous- 75 °C, Minimum- -40 °C w/o Impact |
| Application | For 30A Switches |
| Enclosure Type | NEMA 1 |
| Special Features | Standard Product |
| Type | Enclosures without Switch |
| Width | 3.2 in |
| Environmental Conditions | Indoor Only |
| Style | Standard Duty |
| Description - Invoice | ENCL, METALLIC NEMA 1 |
| Harmonization Code | 7616999999 |
| MSDS Flag | No |
| Sub Class Code | A16A240 |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 7.200 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Each - Pack Description | Each |
| Pallet - GTIN - Package | 70783585016985 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
