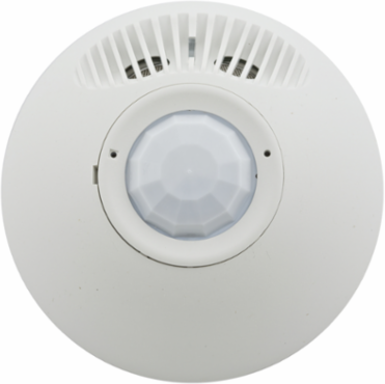

Hubbell Wiring Device-Kellems ATD1000CRP Adaptive Dual-Technology Ceiling Sensor, 1000 Sq Ft Coverage, 24V DC

MPN: ATD1000CRP
UPC: 783585392417
PPN: HBL-ATD1000CRP
UNSPSC: 39122236

$352.22

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Switches and Lighting Controls, Occupancy Sensors, Adaptive Dual-Technology Ceiling Sensor, 1000 Square Feet Coverage, With Relay

Features

Coverage 1000 sq. ft. (180°) with photocell and isolated relay, low voltage sensor
Minimize the risk of false triggering
lights turning ON when the space is un-occupied. Offer the best performance for most applications
Office White ABS enclosure blends with ceiling tile
Relay to interface with auxiliary systems such as HVAC
Red LED indicates passive infrared detection and Green LED indicates ultrasonic detection
Install and Forget" operation. Auto-adjusting adaptive technology eliminates manual adjustments
With Photocell and Relay

Documentation & Downloads

Specifications

Additional

Voltage	24 V DC
Coverage Area	1000 sq. ft.
Time Delay	Test (8 seconds), adaptive 8 to 40 minutes
Mounting Height	8 to 12 ft
Diameter	4.5 in
Material	ABS (Acrylonitrile butadiene styrene - Thermoplastic polymer)
Lens Material	Polyethylene
Storage Temperature Range	-20 F to 150 F (-29 C to 65 C)
Sensitivity	Adaptive 0 to 100%
Compliance	cULus listed to UL244A, ASHRAE 90.1 compliant, CEC Title 24 compliant

Power Consumption	33 mA
Coverage Angle	180
Relay Type	Isolated, normally open and normally closed terminals
Height	1.5 in
Width	5.5 in
Housing Material	Flame retardant UL 94 V-0 ABS
Operating Temperature	32 F to 104 F (0 C to 40 C)
Relative Humidity	0% to 95%, non-condensing
Sensing Indicators	Red LED (Passive Infrared), Green LED (Ultrasonic)
Country of Origin	CN
