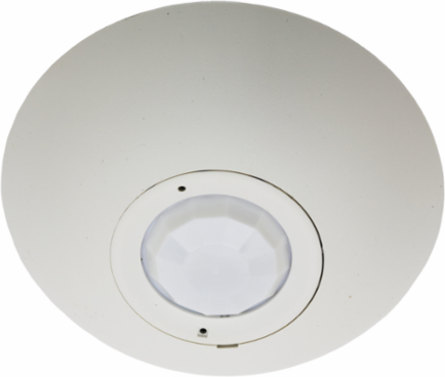

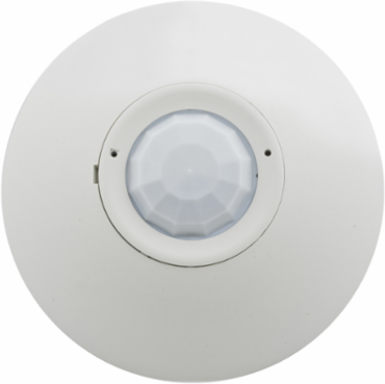

Hubbell Wiring Device-Kellems ATP1500C Adaptive Infrared Ceiling Sensor, 1500 Square Feet Coverage, 24V DC
Hubbell Wiring Device-Kellems ATP1500C Adaptive Infrared Ceiling Sensor, 1500 Square Feet Coverage, 24V DC
- MPN: ATP1500C
- UPC: 783585392530
- PPN: HBL-ATP1500C
- UNSPSC: 39122236
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$309.88/ EA
Description
Switches and Lighting Controls, Occupancy Sensors, Adaptive Technology Passive Infrared Ceiling Sensor, 1500 Square Feet Coverage
Features
- Coverage 1500 sq. ft. (360°), low voltage sensor, low voltage sensor
- Long range major motion detection
- Office White ABS enclosure blends with ceiling tile
- Red LED indicates passive infrared detection
- Install and Forget" operation. Auto-adjusting adaptive technology eliminates manual adjustments
- Standard Product
Specifications
Specifications
- Country of Origin
- China
- Height
- 1.5 in
- Industry Standard(s)
- ASHRAE 90.1 Compliant;cULus Listed To UL244A
- Storage Temperature Range
- -20°F to 150°F (-29°C to 65°C)
- Color
- White
- Load
- Load Is A Function Of The Control Unit
- Operating Cycles
- 6,000 Cycles Minimum
- Sensitivity
- Adaptive 0 to 100%
- Standard
- ASHRAE 90.1 Compliant;cULus Listed To UL244A
- Type
- Sensors
- Voltage Rating Description
- 24V DC
- General Literature Asset 2 Display Text
- Load:Logic® Control Panels
- Coverage
- 1500 ft²
- Load Capacity
- Load Is A Function Of The Control Unit
- Style
- Ceiling Mount
- Description - Invoice
- AT PIR OCCSENS, CEILING, 1500 SQ FT
- Harmonization Code
- 8536507000
- MSDS Flag
- No
- Sub Class Code
- A48A450
- Mounting Height
- 8-12 ft
- Material
- ABS (Acrylonitrile butance styrene - Thermoplastic polymer)
- Supply Voltage
- 24V DC From Control Unit
- BOX SIZE
- 6.800x13.300x11.300 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585392530
- Case Weight
- 6.157 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 47.600 in
- Pallet Weight
- 399.000 lb.
Width5.400 in
Humidity0% to 95% non-condensing relative humidity
PerformanceControls - Ambient Light - 1 to 1000 foot candles;Controls - Sensitivity - Adaptive 0 to 100%;Controls - Time Delay - Test (8 seconds), adaptive 8 to 40 minutes;Electrical - Power Requirements - 24V DC nominal, 33mA from Hubbell CU series control unit;Environmental - Operating Temperature - 32°F to 104°F (0°C to 40°C) with rate of change not exceeding 20°F (11°C) per hour;Environmental - Storage Temperature - -20°F to 150°F (-29°C to 65°C), 0% to 95% non-condensing relative humidity;Sensing Indicators - Passive Infrared - Red LED
ApplicationCompatible with most LED and CFL
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
MountingCeiling Mount
Operating Temperature32 Deg F to 104 Deg F (0 Deg C to 40 Deg C)
Special FeaturesStandard Product
Target SizePeople in
Voltage Rating24 VDC
General Literature Asset 1 Display TextLoad Control Application Guide
General Literature Asset 3 Display TextEducation Application Guide
Diameter4.5 in
Mounting TypeCeiling Mount
Class CodeA48
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberATP600C
Material - Mounting HardwareScrew Mounting
Indicator(s) TypePIR= Red LED
SeriesPassive Infrared
Base Unit of MeasureEA
Carton - Gross Weight per Pack7.2 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585392539
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
