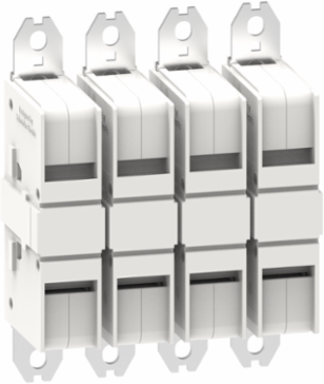

Schneider Electric LA9G4RA TeSys G Switching Module Kit, 4 Poles, 440 A AC-1 Rated Current

MPN: LA9G4RA
PPN: SCH-LA9G4RA

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$1665.68/ EA

Qty:

Loading add to cart quantity...

Description

These accessories are switching module for TeSys Giga 265-330 contactor. It is used to 4 Poles electrical circuit. It is possibility to replace switching module (main contacts), enhancement contactor life. Switching modules can be replaced quickly and easily, thanks to their plug and play design. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).

Specifications

Environment

Ambient Air Temperature For Operation: -25-60 °C

Ambient Air Temperature For Storage: -60-80 °C

Operating Altitude: 3000 m without power derating || 5000 m with derating factor

Pollution Degree3 IEC 60947-1

StandardsEN/IEC 60947-4-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || GB/T 14048.4

Offer Sustainability

China Rohs Regulation: X

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP2105013

Pvc Free: Yes

Reach Regulation: Reference contains Substances of Very High Concern above the threshold

Circularity ProfileENVEOLI2105013

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Eu Rohs DirectiveCompliant with Exemptions

Halogen Content PerformanceHalogen free plastic parts product

Specifications

Quantity Per Set: set of 4

Device Short Name: LA9G

Product Or Component Typeswitch module

RangeTeSys

Complementary

Maximum [Ie] Rated Operational Current: 440 A AC-1 <= 440 V 40 °C

Poles Description: 4P

Accessory / Separate Part Type: kit

Connections - Terminalsbolted connection

Product CompatibilityLC1G265...330
