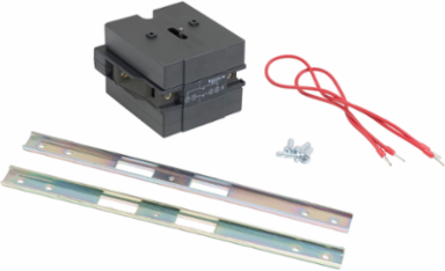

Schneider Electric LA9D11502 TeSys Deca Mechanical & Electrical Interlock for 3-4 Poles, Reversing/Changeover
- MPN: LA9D11502
- PPN: SCH-LA9D11502
CAD
$154.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys Deca mechanical interlock, for 3-pole and 4-pole contactors LC1D115, LC1D150. For assembling reversing and changeover contactors. It includes an integral electrical interlocking. Green Premium compliant (RoHS/REACh).
Features
- This premium TeSys Deca interlocking mechanism utilizes a sophisticated dual-protection design that combines a physical mechanical lockout with integrated electrical interlocking circuitry. This "double guarantee" configuration physically blocks both contactors from closing simultaneously while actively breaking the opposing control loop circuit, eliminating any risk of phase-to-phase short circuits during rapid transitions.
- Engineered precisely for large-scale motor control architectures, this interlocking kit is fully compatible with both 3-pole and 4-pole TeSys D and TeSys Deca LC1D115 and LC1D150 contactors. The molded mounting dimensions guarantee a perfect physical fit between the two heavy-duty contactors, aligning the internal switching gates smoothly without the need for manual spacing adjustments or custom panel modifications.
- This versatile unit is engineered to manage both high-performance motor reversing sequences and critical power changeover/transfer operations. This multi-application adaptability makes it the ideal choice for configuring heavy industrial forward-reverse conveyor lines, processing mills, or secondary standby power source changeovers where dual-source isolation is mandatory.
- This modular interlocking assembly comes factory-configured with integral electrical connection pathways that streamline your control loop wiring. This reduces the number of loose field jumper wires your technicians must cut, route, and terminate by hand, dramatically cutting assembly labor times and reducing human wiring errors during panel building or field retrofits.
Documentation & Downloads
Specifications
Key Specifications
- Interlocking Type
- electrical and mechanical
- Range Compatibility
- TeSys TeSys D contactor || TeSys TeSys Deca
- Product Or Component Type
- mechanical interlock
- Range
- Linergy
- Electrical Circuit Type
- changeover || reversing
- Device Short Name
- LA9D
Range Of ProductTeSys Deca
Accessory / Separate Part Categoryinterlocking accessory
Product NameFT
Poles Description3P || 4P
Product CompatibilityLC1D115 || LC1D150
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectiveCompliant
Contractual warranty
- Warranty
- 18 months
