Hubbell Premise Wiring

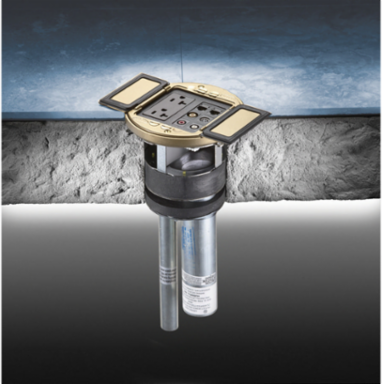

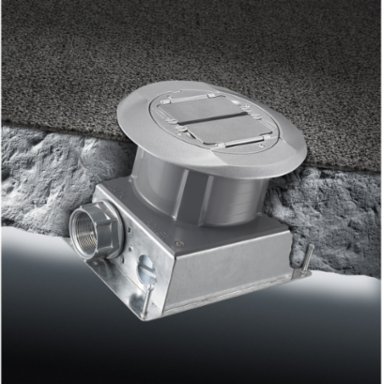

Hubbell Premise Wiring S1SFBAV SystemOne Round Flush Floorbox, Galvanized Stamped, 3 Inch Depth, 9.5 Inch Width

SystemOne Round Flush Floorbox, Galvanized Stamped, 3 Inch Depth, 9.5 Inch Width
SystemOne Round Flush Floorbox, Galvanized Stamped, 3 Inch Depth, 9.5 Inch Width
SystemOne Round Flush Floorbox, Galvanized Stamped, 3 Inch Depth, 9.5 Inch Width
SystemOne Round Flush Floorbox, Galvanized Stamped, 3 Inch Depth, 9.5 Inch Width
  • MPN: S1SFBAV
  • UPC: 783585371665
  • PPN: HBL-S1SFBAV
  • UNSPSC: 39121307

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$397.05/ EA

Description

SystemOne Round Flush Floorbox, Galvanized Stamped, 3.5" Min Dept of Pour

Features

  • Supplied with concrete cover and closure plugs
  • Accommodates high-capacity multimedia applications
  • Leveling feet provide before pour adjustability

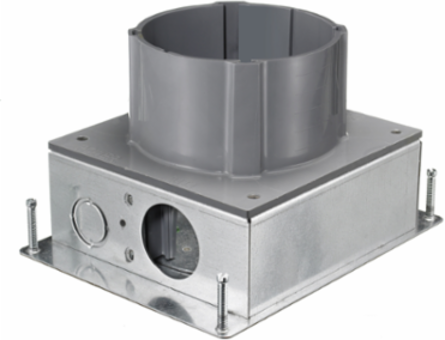

  • Preglavanized Galvanized Stamped Steel Box with PVC Riser; Concentric Knock-Outs

Specifications

Specifications

Application - For Use On
Concrete
Cover Shape
Round
Each - Width
9.500 in
Mounting Method
Cast Into Concrete
Application
For Use in Concrete Floors
Color
Gray
Knockouts
1) 3/4 in and 1 in Concentric, 1) 1 1/2 in NPT Hub
Size
7.5 in x 9.5 in x 3 in
Standard
cULus;UL514
Width
9.5 in
Freight Class Code
06168002
Image Actual Or Representative
A
Construction
Stamped
Series
Flush - S1 Series
BOX SIZE
8.600x10.200x9.500 (in)
Carton - Number of Sub Packs
1
Carton - SCC-14 Next Lower Level Sub Pack
00783585371665
Case Weight
6.450 lb.
Lowest Level UOM
Each
Country of OriginUS
Dimensions7.5 in x 9.5 in x 3 in
Industry Standard(s)cULus;UL514
ServiceSingle; Multi
Cable EntryFrom Top
Height3 in
Length7.5 in
Special FeaturesPreglavanized Galvanized Stamped Steel Box with PVC Riser; Concentric Knock-Outs
TypeRound Box
Description - InvoiceFBOX, SYSTEM ONE, A/V, STEEL, 1.5" HUB
Harmonization Code7326908688
MSDS FlagNo
MaterialComposite
Base Unit of MeasureEA
Carton - Gross Weight per Pack6.450 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1
Each - Pack DescriptionEach

Certifications

EU RoHS Indicator
No
