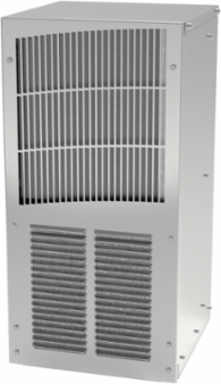

nVent Hoffman T200246G401 T-Series Compact Outdoor T20, 2000BTU 460V, Brushed, SS304
- MPN: T200246G401
- UPC: 783510243043
- PPN: HOF-T200246G401
- UNSPSC: 40101701
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
T-Series Compact Outdoor Acs have small footprint and designed to blend into surroundings. This T-Series Compact Outdoor T20, T200246G401 item is rated 2000BTU 460V with a material of SS304 finish Brushed.
Features
- Compact footprint to minimize real estate and maximize capacity
- Models for 115, 230 and 460 VAC power input
- Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C
- UL Listed to save customers time and money with agency approvals (some models UL recognized)
- Painted galvanized or stainless steel sheet-metal cover for rugged factory and outdoor environments
- Reliable mechanical thermostat on enclosure side of the unit
- Dual condenser-side air movers for performance redundancy
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- Exterior and fully recessed mounting options on many models
- Easy-mount flanges for simple installation
- Every unit functionally tested before shipping
- Standard Outdoor Air Conditioner models include: Thermostat, corrosion-resistant components, malfunction switch, compressor heater, head pressure control, enclosure heater and R134A refrigerant
- Mounting hardware, gaskets and user manual furnished with the unit
- Item T150116G120 is only for indoor purpose
Documentation & Downloads
Specifications
Additional
- Nominal Capacity Btu/h
- 2,000 BTU/hr
- Voltage Rating
- 460 VAC
- Number of Phases
- 1
- Height (H)
- 616 mm (24.3 in.)
- Depth (D)
- 251 mm (9.9 in.)
- Material
- Stainless Steel 304 (SS304)
- Protection Rating
- NEMA Type 4X Watertight, corrosion-resistant
- Sound Level
- 66 dB(A)
- Power Consumption
- 700/805 W
- Starting Current
- 19 A
- Refrigerant
- R134A
- Thermostat Location
- Enclosure side
- Airflow External Loop 50 Hz
- 150 CFM
- Filter Material
- Aluminum mesh, cleanable and reusable
Nominal Capacity Watts586 W
Max Current1.9 A
Operating Temperature-40 F to 131 F (-40 C to 55 C)
Width (W)254 mm (10 in.)
Weight60 lb (27.2 kg)
FinishBrushed #3
Enclosure Protection TypeType 12, 3R, 4 standard; Type 4X stainless steel optional
Cooling Capacity2,000 BTU/hr
Maximum Current (Nominal)7.0 A
Frequency50/60 Hz
Mounting OptionsExterior and fully recessed
Airflow Internal Loop 50 Hz77 CFM
Max Heater Power (Outdoor Models)500 W
Remote Access ControlNo
