nVent Hoffman T150116G151 T-Series Compact Outdoor with Heat T15, 800BTU 115V, Brushed, SS304
- MPN: T150116G151
- UPC: 783510224929
- PPN: HOF-T150116G151
- UNSPSC: 40101701
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

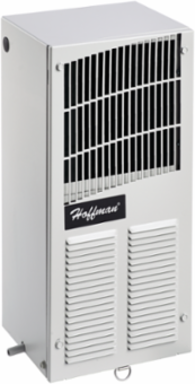

T-Series Compact Outdoor Acs have small footprint and designed to blend into surroundings. This T-Series Compact Outdoor with Heat T15, T150116G151 item is rated 800BTU 115V with a material of SS304 finish Brushed.
Features
- Compact footprint to minimize real estate and maximize capacity
- Models for 115, 230 and 460 VAC power input
- Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C
- UL Listed to save customers time and money with agency approvals (some models UL recognized)
- Painted galvanized or stainless steel sheet-metal cover for rugged factory and outdoor environments
- Reliable mechanical thermostat on enclosure side of the unit
- Dual condenser-side air movers for performance redundancy
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- Exterior and fully recessed mounting options on many models
- Easy-mount flanges for simple installation
- Every unit functionally tested before shipping
- Standard Outdoor Air Conditioner models include: Thermostat, corrosion-resistant components, malfunction switch, compressor heater, head pressure control, enclosure heater and R134A refrigerant
- Mounting hardware, gaskets and user manual furnished with the unit
- Item T150116G120 is only for indoor purpose
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Nominal Capacity Watts
- 235
- Number of Phases
- 1
- Finish
- Brushed #3
- Width (W)
- 191
- Operating Temperature
- -40
- Remote Access Control
- No
- Product Family
- T-Series
- NEMA Rating
- 4X Watertight, corrosion-resistant
- Sub Brand
- T-Series
- BTU Rating
- 800
- Frequency Rating
- 50/60 Hz
Nominal Capacity Btu/h800
Nominal Voltage115
MaterialStainless Steel 304
Height (H)400
Depth (D)160
Max Current3.5
Protection RatingNEMA Type 4X
Thickness (T)1.21
Weight27.6
Voltage Rating100 - 120 VAC
Amperage Rating3.8/3.6 Amp
ColorGray
