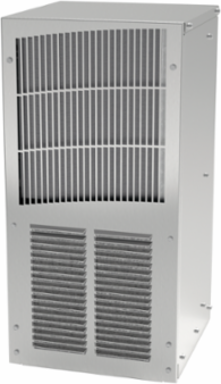

Nvent Hoffman T200226G103 T-Series Compact Outdoor T20, 2000BTU 230V, Brushed, SS304
Nvent Hoffman T200226G103 T-Series Compact Outdoor T20, 2000BTU 230V, Brushed, SS304
- MPN: T200226G103
- UPC: 783510232733
- PPN: HOF-T200226G103
- UNSPSC: 40101701
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
T-Series Compact Outdoor Acs have small footprint and designed to blend into surroundings. This T-Series Compact Outdoor T20, T200226G103 item is rated 2000BTU 230V with a material of SS304 finish Brushed.
Features
- Compact footprint to minimize real estate and maximize capacity
- Models for 115, 230 and 460 VAC power input
- Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C
- UL Listed to save customers time and money with agency approvals (some models UL recognized)
- Painted galvanized or stainless steel sheet-metal cover for rugged factory and outdoor environments
- Reliable mechanical thermostat on enclosure side of the unit
- Dual condenser-side air movers for performance redundancy
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- Exterior and fully recessed mounting options on many models
- Easy-mount flanges for simple installation
- Every unit functionally tested before shipping
- Standard Outdoor Air Conditioner models include: Thermostat, corrosion-resistant components, malfunction switch, compressor heater, head pressure control, enclosure heater and R134A refrigerant
- Mounting hardware, gaskets and user manual furnished with the unit
- Item T150116G120 is only for indoor purpose
Specifications
Specifications
- BABA
- Contact Manufacturer
- Nominal Capacity Watts
- 586
- Number of Phases
- 1
- Finish
- Brushed #3
- Width (W)
- 254
- Operating Temperature
- -40
- Remote Access Control
- No
- Product Family
- T-Series
- NEMA Rating
- 4X Watertight, corrosion-resistant
- Sub Brand
- T-Series
- BTU Rating
- 2,000
- Frequency Rating
- 50/60 Hz
Nominal Capacity Btu/h2,000
Nominal Voltage230
MaterialStainless Steel 304
Height (H)508
Depth (D)251
Max Current3.5
Protection RatingNEMA Type 4X
Thickness (T)1.21
Weight44.2
Voltage Rating200 - 250 VAC
Amperage Rating3.5 Amp
ColorGray
