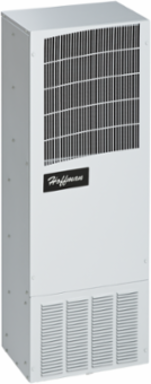

nVent Hoffman T431016G153 T-Series Mid-Size Outdoor with Heat T43, 10000BTU 115V, Brushed, SS304
- MPN: T431016G153
- UPC: 783510222567
- PPN: HOF-T431016G153
- UNSPSC: 40101701
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
T-Series Mid-Size ACs cool a range of heat loads and designed to blend into surroundings. This T-Series Mid-Size Outdoor with Heat T43, T431016G153 item is rated 10000BTU 115V with a material of SS304 finish Brushed.
Features
- Compact footprint to minimize real estate and maximize capacity
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- R134A or R-407C refrigerant
- Models for 115, 230 and 460 VAC power input
- Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C
- Reliable mechanical thermostat on enclosure side of the unit
- Dual condenser-side air movers for performance redundancy
- Painted galvanized sheet-metal or stainless steel cover for rugged factory and outdoor environments
- Easy-mount flanges for simple installation
- Every unit functionally tested before shipping
- Exterior and fully recessed mounting options on many models
- Standard Outdoor Air Conditioner models include: telcordia GR-487 capable, thermostat, corrosion-resistant components, malfunction switch, compressor heater, head pressure control and enclosure heater
- Mounting hardware, gaskets and user manual furnished with the unit
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 400
- Nominal Voltage
- 115
- Number of Phases
- 1
- Nominal Capacity Watts
- 3,224
- Max Current
- 21
- Product Family
- T-Series
- Finish
- Brushed #3
- NEMA Rating
- 4X Watertight, corrosion-resistant
- Sub Brand
- T-Series
- Voltage Rating
- 115
- Amperage Rating
- 16.2/21.0 A
- Frequency Rating
- 50/60 Hz
Height (H)1,092
Depth (D)277
Remote Access ControlNo
Nominal Capacity Btu/h11,000
Operating Temperature-40
Protection RatingNEMA Type 4X
MaterialStainless Steel 304
Thickness (T)1.21
Weight150
ModelT43
BTU Rating11,000
Power1774/2350
ColorGray
