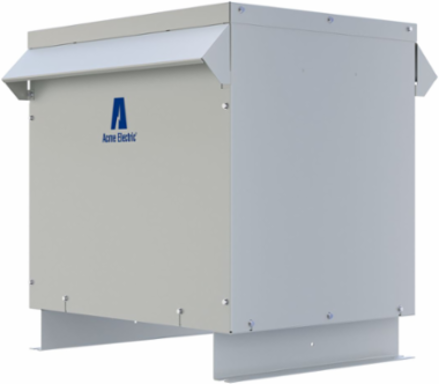

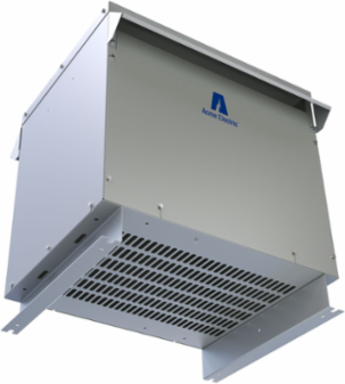

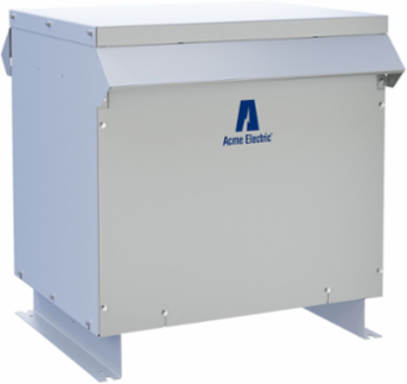

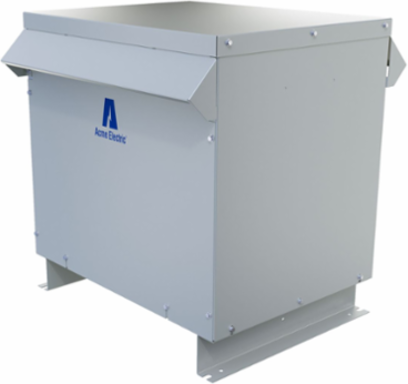

Acme Electric T3030K0013BCS T3030K0013BCS
- MPN: T3030K0013BCS
- UPC: 047503093887
- PPN: HBL-T3030K0013BCS
- UNSPSC: 39121001
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
T3030K0013BCS
Documentation & Downloads
Specifications
Key Specifications
- Buy American Compliant
- Contact Manufacturer
- Dimensions
- 19.37 in x 24.39 in x 25.5 in
- Max Temperature Rise
- 150 Degrees Celsius
- Secondary Voltage
- 208Y/120 V
- Frequency Rating
- 60 Hz
- Length
- 19.37 in
- Primary Voltage
- 480D V
- Material type
- ZFIN
- Nema Rating
- NEMA 3R
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- TFMR 3PH 30KVA 480-208Y120
- Harmonization Code
- 8504330020
- Sub Class Code
- D10D100
- Winding Material
- CU
- Base Unit of Measure
- EA
Country of OriginMX
kVA30.0
Product Type480D Primary Volts - 208Y/120 Secondary Volts
Efficiency98.23%
Height25.5 in
MountingFloor
Width24.39 in
Mounting TypeFloor
Weight365 lb.
Class CodeD10
Freight Class Code06342001
Image Actual Or RepresentativeA
Electrostatic ShieldShielded
ConstructionVentilated
Carton - SCC-14 Next Lower Level Sub Pack00047503093887
