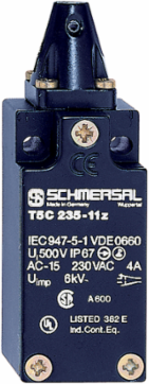

Schmersal 101171209 T3C 235-02Z-M20 Safety Switch, IP67, 2 NC Contacts, Stainless Steel Lever
- MPN: 101171209
- PPN: SCM-101171209
CAD
$200.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
T3C 235-02Z-M20 Safety Switch, IP67, 2 NC Contacts, Stainless Steel Lever
Features
- 1 Cable entry M 20 x 1.5
- Metal enclosure
- Good resistance to oil and petroleum spirit
- 30 mm x 88,5 mm x 30 mm
- Actuator heads can be repositioned by 4 x 90°
Documentation & Downloads
Specifications
Safety appraisal
- Standards
- BG-GS-ET-15 | EN ISO 13849-1 | EN 60947-5-1
Mission Time20 Year(s)
Electrical data
- Thermal test current
- 10 A
- Utilisation category AC-15
- 4 A
- Utilisation category DC-13
- 1 A
- Switching principle
- Creep circuit element
Utilisation category AC-15230 VAC
Utilisation category DC-1324 VDC
Switching elementOpener (NC)
Switching frequency5,000 /h

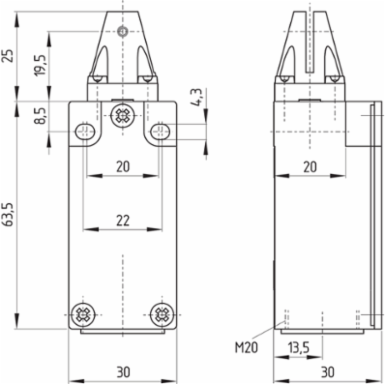

Mechanical data - Dimensions
- Length of sensor
- 30 mm
- Height of sensor
- 94.5 mm
Width of sensor93 mm
Height of the actuator78 mm
Ambient conditions - Insulation value
- Rated insulation voltage U
- 500 V
Rated impulse withstand voltage U6 kV
Safety appraisal - Safety outputs
- B10d Normally-closed contact (NC)
- 20,000,000 Operations
General data - Features
- Number of safety contacts
- 2
General data
- Enclosure material
- Zinc die-cast
- Material of the contacts, electrical
- Silver
- Gross weight
- 190 g
Enclosure coating materialpainted
Lever materialStainless steel
Ambient conditions
- Degree of protection
- IP67
- Ambient temperature, maximum
- +80 °C
Ambient temperature, minimum-30 °C
Mechanical data - Connection technique
- Terminal Connector
- Screw terminals M20 x 1.5
- Cable section, maximum
- 1 x 2.5 mm²
Cable section, minimum1 x 0.75 mm²
Note (Cable section)All indications about the cable section are including the conductor ferrules.

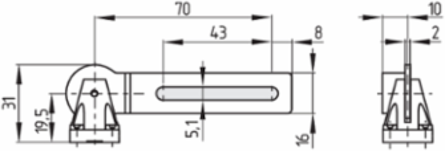

Mechanical data
- Actuating element
- Swivel lever

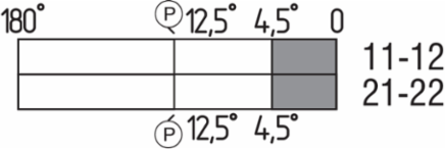

- Positive break angle
- 12.5 °
- Opening angle
- 180°
Mechanical life, minimum1,000,000 Operations
Positive break torque0.2 Nm
Approval - Standards
- Certificates
- cULus | CCC | EAC
