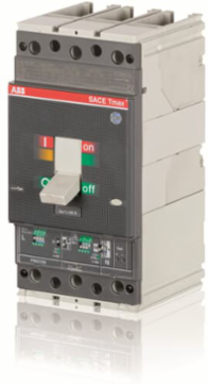

ABB 1SDA054133R1 T4H 320 PR221DS-LS/I In=320 3p F F
- MPN: 1SDA054133R1
- UPC: 804325521567
- PPN: ABB-1SDA054133R1
- UNSPSC: 39121100
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
C.BREAKER TMAX T4H 320 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR221DS-LS/I R 320
Specifications
Additional Information
- Electrical Durability
- 6000 cycle120 cycles per hour
- Number of Poles
- 3
- Product Main Type
- SACE Tmax T
- Product Type
- Automatic Circuit Breaker
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Operational Voltage
- 690 V AC
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 100 kA(230 V AC) 100 kA(380 V AC) 70 kA(400 V AC) 70 kA(415 V AC) 70 kA(440 V AC) 65 kA(500 V AC) 50 kA(690 V AC) 40 kA
- Release
- PR221DS-LS/I
- Short-Circuit Performance Level
- H
- Sub-type
- T4
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Test Voltage Max (Utest)
- 3500 V
- Version
- F
Mechanical Durability20000 cycle240 cycles per hour
Power Lossat Rated Operating Conditions per Pole 17.6 W
Product NameMoulded Case Circuit Breaker
Rated Current (In)320 A
Rated Insulation Voltage (Ui)1000 V
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 100 kA(230 V AC) 100 kA(380 V AC) 70 kA(400 V AC) 70 kA(415 V AC) 70 kA(440 V AC) 65 kA(500 V AC) 50 kA(690 V AC) 40 kA
Rated Uninterrupted Current (Iu)320 A
Release TypeEL
StandardsIEC
Suitable ForT4
Terminal Connection TypeFixed Circuit-BreakersFront
Test Voltage at Industrial Frequency for 1 Minute3500 V
Dimensions
- Product Net Width
- 105 mm
- Product Net Depth / Length
- 103.5 mm
Product Net Height205 mm
Product Net Weight3.5 kg
Classifications
- Object Classification Code
- Q
- eClass
- V11.1 : 27370409
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Environmental
- Environmental Information
- 9AKK10103A1057
- RoHS Information
- 9AKK108466A1424
REACH Declaration9AKK108466A1425
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- Document availability on demand
Toxic Substances Control Act - TSCA9AKK108467A8326
Ordering
- E-Number (Finland)
- 3655182
- Customs Tariff Number
- 85362090
Minimum Order Quantity1 piece
