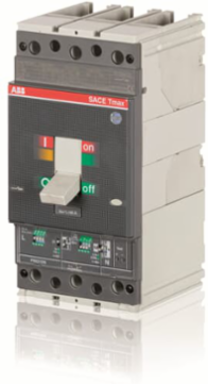

ABB 1SDA054505R1 T4L250 PR221DS-LS/I In100 3p FFC 1000VAC
- MPN: 1SDA054505R1
- UPC: 804325549608
- PPN: ABB-1SDA054505R1
- UNSPSC: 39121100
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
C.BREAKER TMAX T4L 250 1000V AC FIXED THREE-POLE WITH FRONT TERMINALS FOR CABLE Cu AND SOLID-STATE RELEASE IN AC PR221DS-LS/I R 100
Specifications
Additional Information
- Electrical Durability
- 8000 cycle120 cycles per hour
- Number of Poles
- 3
- Product Main Type
- SACE Tmax T
- Product Type
- Automatic Circuit Breaker
- Rated Voltage (Ur)
- 1000 V AC
- Rated Insulation Voltage (Ui)
- 1150 V
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (1000 V AC) 12 kA
- Rated Uninterrupted Current (Iu)
- 250 A
- Release Type
- EL
- Standards
- IEC
- Suitable For
- T4
- Terminal Connection Type
- Fixed Circuit-BreakersFront for Copper Cables
- Version
- F
Mechanical Durability20000 cycle240 cycles per hour
Power Lossat Rated Operating Conditions per Pole 1.7 W
Product NameMoulded Case Circuit Breaker
Rated Current (In)100 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Operational Voltage1000 V AC
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(1000 V AC) 12 kA
ReleasePR221DS-LS/I
Short-Circuit Performance LevelL
Sub-typeT4
Suitable for Product ClassMoulded Case Circuit Breakers
Test Voltage Max (Utest)3500 V
Dimensions
- Product Net Width
- 105 mm
- Product Net Depth / Length
- 103.5 mm
Product Net Height205 mm
Product Net Weight3.5 kg
Classifications
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Object Classification CodeQ
eClassV11.1 : 27370409
Environmental
- Environmental Information
- 9AKK10103A1057 9AKK108467A6707
- RoHS Information
- 9AKK108466A1424
REACH Declaration9AKK108466A1425
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Ordering
- Minimum Order Quantity
- 1 piece
Customs Tariff Number85362090
