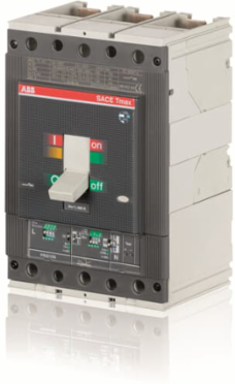

ABB 1SDA054396R1 T5N 630 PR221DS-LS/I In=630 3p F F
- MPN: 1SDA054396R1
- UPC: 662019157290
- PPN: ABB-1SDA054396R1
- UNSPSC: 39121100
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
C.BREAKER TMAX T5N 630 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR221DS-LS/I R 630
Specifications
Additional Information
- Electrical Durability
- 5000 cycle60 cycles per hour
- Number of Poles
- 3
- Product Main Type
- SACE Tmax T
- Product Type
- Automatic Circuit Breaker
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Operational Voltage
- 690 V AC
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 70 kA(230 V AC) 70 kA(380 V AC) 36 kA(400 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 30 kA(500 V AC) 25 kA(690 V AC) 20 kA
- Release
- PR221DS-LS/I
- RoHS Date
- NA
- Standards
- IEC
- Suitable For
- T5
- Terminal Connection Type
- Fixed Circuit-BreakersFront
- Test Voltage at Industrial Frequency for 1 Minute
- 3500 V
Mechanical Durability20000 cycle120 cycles per hour
Power Lossat Rated Operating Conditions per Pole 41 W
Product NameMoulded Case Circuit Breaker
Rated Current (In)630 A
Rated Insulation Voltage (Ui)1000 V
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 70 kA(230 V AC) 70 kA(380 V AC) 36 kA(400 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 30 kA(500 V AC) 25 kA(690 V AC) 20 kA
Rated Uninterrupted Current (Iu)630 A
Release TypeEL
Short-Circuit Performance LevelN
Sub-typeT5
Suitable for Product ClassMoulded Case Circuit Breakers
Test Voltage Max (Utest)3500 V
VersionF
Dimensions
- Product Net Width
- 140 mm
- Product Net Depth / Length
- 103.5 mm
Product Net Height205 mm
Product Net Weight4.817 kg
Classifications
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Object Classification CodeQ
eClassV11.1 : 27370409
Environmental
- Environmental Information
- 9AKK10103A1056 9AKK108467A6707
- RoHS Information
- 9AKK108466A1424
- SCIP
- b05eee46-ac7c-4986-b103-4456de0f7bf3 Italy (IT)
REACH Declaration9AKK108466A1425
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Simplified SCIPb50cb66e-0fa0-4466-beea-a3d96200a766 Netherlands (NL)7655a3fc-ee55-46bb-9a8c-a91a6d7db03e Spain (ES)8ec5fc74-95a6-45be-bdfc-32c11407fa92 Netherlands (NL)b3e66b09-8949-425f-b245-df78b5fead9e Germany (DE)25def33a-10a4-4e45-9ccc-a96d65b5c9e1 Sweden (SE)355d8eea-bdc0-4103-80d0-dde4e8fd538a France (FR)a1c0933b-8ce1-486f-b55c-b83739d17749 Poland (PL)52808cb7-53d9-4567-b91a-dcbd1efd3ac7 Sweden (SE)0cae59a1-9a0d-4154-9401-e923f4215204 Bulgaria (BG)de7cd5be-ee1a-4a1a-98de-0c8ecf87dc92 Portugal (PT)09d8a2ed-08d2-4791-84f8-84ae2dc70197 Greece (GR)a9a82c36-6b93-471c-b403-1b2d60d25421 Estonia (EE)ef35ae13-5b14-4367-ae05-c480d4a4fb1c Poland (PL)31a1fa2a-9be6-4c5b-8152-8d9c343cc857 Netherlands (NL)2757738b-3e1d-4110-ae81-0e76cd8e6481 Netherlands (NL)230d99e2-75de-4436-bdeb-94b289c97d2d Czech Republic (CZ)003d886f-39cc-435e-8485-5dab2fac3fe1 Croatia (HR)b7284998-9321-4095-ad97-d508f687d998 Germany (DE)5208c008-66a2-4f36-a1e2-a0561adf6c54 Denmark (DK)4cd82cce-1d3e-4e20-8214-9aacdcbd57c2 Germany (DE)51fc47bb-bef0-4864-92c1-3f36cc25d242 France (FR)f9db9213-cda5-47cb-9dc6-ae61d4cee6c9 Germany (DE)ad74c881-87ff-4c49-b26b-e2e55e42ae7c Poland (PL)2d5ee082-b7fa-4a5b-a55e-2700ca49848d Netherlands (NL)94ab850b-ee6d-4786-8c9d-1feaf95bd94b Finland (FI)66546424-47f0-4ae8-a814-ead92287e534 Norway (NO)
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Ordering
- E-Number (Finland)
- 3655323
- Minimum Order Quantity
- 1 piece
E-Number (Sweden)3180374
Customs Tariff Number85362090
