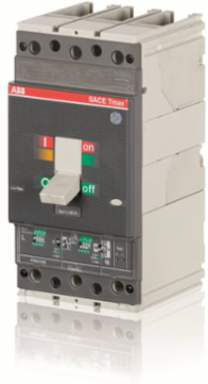

ABB 1SDA054509R1 T4L250 PR221DS-LS/I In250 3p FFC 1000VAC
- MPN: 1SDA054509R1
- UPC: 804325182775
- PPN: ABB-1SDA054509R1
- UNSPSC: 39121100
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
C.BREAKER TMAX T4L 250 1000V AC FIXED THREE-POLE WITH FRONT TERMINALS FOR CABLE Cu AND SOLID-STATE RELEASE IN AC PR221DS-LS/I R 250
Specifications
Additional Information
- Electrical Durability
- 8000 cycle120 cycles per hour
- Number of Poles
- 3
- Product Main Type
- SACE Tmax T
- Product Type
- Automatic Circuit Breaker
- Rated Voltage (Ur)
- 1000 V AC
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (1000 V AC) 12 kA
- Rated Uninterrupted Current (Iu)
- 250 A
- Release Type
- EL
- Standards
- IEC
- Terminal Connection Type
- Fixed Circuit-BreakersFront for Copper Cables
- Version
- F
Mechanical Durability20000 cycle240 cycles per hour
Power Lossat Rated Operating Conditions per Pole 10.7 W
Product NameMoulded Case Circuit Breaker
Rated Current (In)250 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Operational Voltage1000 V AC
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(1000 V AC) 12 kA
ReleasePR221DS-LS/I
Short-Circuit Performance LevelL
Sub-typeT4
Test Voltage Max (Utest)3500 V
Dimensions
- Product Net Width
- 105 mm
- Product Net Depth / Length
- 103.5 mm
Product Net Height205 mm
Product Net Weight3.5 kg
Classifications
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Object Classification CodeQ
eClassV11.1 : 27370409
Environmental
- Environmental Information
- 9AKK10103A1057 9AKK108467A6707
- RoHS Information
- 9AKK108466A1424
- SCIP
- d1929f95-57c8-42e1-a323-0cb1ff2f083e Italy (IT)
REACH Declaration9AKK108466A1425
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Simplified SCIP7ffcd44d-5891-4b83-9690-4fca2413e7d1 Norway (NO)0e82a2b5-cdf1-4c68-9d44-bbdc76c7b9a7 Finland (FI)a23c3367-1ceb-475f-8a5f-218b62006264 Poland (PL)e5d5fd88-cc36-4916-8a5f-3fb708d4da70 Denmark (DK)cd346fd2-7369-4e35-8ded-c851565e298c Netherlands (NL)467682e7-a2fa-4cd8-86fd-06e5adca3fc6 Germany (DE)1ecb6adb-dbb4-4961-a625-16163aedff87 Germany (DE)afe00873-b770-4e29-864c-6cf49c2c3a41 Croatia (HR)e76c60fa-16ef-464c-9dd4-1fd7559e830f Czech Republic (CZ)83996cfd-02ad-4a8b-a480-6721ceed2da2 Poland (PL)23e3b41f-7f39-4fc8-afa6-372de1c44dc3 Netherlands (NL)d143582d-917b-4964-a4b1-c0c13c81e5cd Netherlands (NL)5879df52-54fb-4ed7-84e0-aada5e595eff Estonia (EE)d76d618f-582a-46f1-bf76-d7f45f26a67b Greece (GR)77320885-6d02-491a-835b-b6577e83bd0a Portugal (PT)0c8dc37c-ae6e-4263-a56d-f8b11ff475c5 Bulgaria (BG)53b970fd-79d3-495d-b96f-89d89eb92011 Sweden (SE)ab872925-08e5-40db-8a27-bfd313280c79 Poland (PL)8cb245d3-8065-47b7-8aa6-7c9cbd6428cf France (FR)19e14faa-dc1a-4819-b310-ad08182ceb07 Sweden (SE)fd6c054b-cb31-4c1c-80e7-b4143e5e98be Germany (DE)6f2372b3-25bc-42bc-8aeb-f0a81d91412c Germany (DE)d50684c1-09c6-41db-973c-4409176951a3 France (FR)5a2ce9c4-9e06-48c8-a1a2-4a88565b71ca Netherlands (NL)b71a48b3-26f2-464c-bb80-de5c655fd834 Netherlands (NL)d9f55919-1930-4d97-8ca0-fffcc3c2a075 Spain (ES)
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Ordering
- E-Number (Finland)
- 3642485
- Customs Tariff Number
- 85362090
Minimum Order Quantity1 piece
