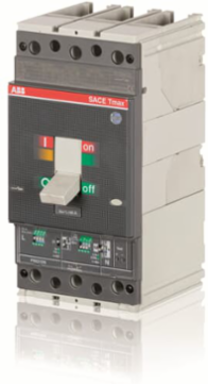

ABB 1SDA054517R1 T4V250 PR221DS-LS/I In250 3p FFC 1150VAC
- MPN: 1SDA054517R1
- UPC: 804325549813
- PPN: ABB-1SDA054517R1
- UNSPSC: 39121100
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
C.BREAKER TMAX T4V 250 1150V AC FIXED THREE-POLE WITH FRONT TERMINALS FOR CABLE Cu AND SOLID-STATE RELEASE IN AC PR221DS-LS/I R 250
Specifications
Additional Information
- Electrical Durability
- 8000 cycle120 cycles per hour
- Number of Poles
- 3
- Product Main Type
- SACE Tmax T
- Product Type
- Automatic Circuit Breaker
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Operational Voltage
- 1150 V AC
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (1000 V AC) 20 kA(1150 V AC) 12 kA
- Release
- PR221DS-LS/I
- Short-Circuit Performance Level
- V
- Sub-type
- T4
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Test Voltage Max (Utest)
- 3500 V
Mechanical Durability20000 cycle240 cycles per hour
Power Lossat Rated Operating Conditions per Pole 10.7 W
Product NameMoulded Case Circuit Breaker
Rated Current (In)250 A
Rated Insulation Voltage (Ui)1150 V
Rated Service Short-Circuit Breaking Capacity (Ics)(1000 V AC) 12 kA(1150 V AC) 6 kA
Rated Uninterrupted Current (Iu)250 A
Release TypeEL
StandardsIEC
Suitable ForT4
Terminal Connection TypeFixed Circuit-BreakersFront for Copper Cables
VersionF
Dimensions
- Product Net Width
- 105 mm
- Product Net Depth / Length
- 103.5 mm
Product Net Height205 mm
Product Net Weight3.5 kg
Classifications
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Object Classification CodeQ
eClassV11.1 : 27370409
Environmental
- Environmental Information
- 9AKK10103A1057 9AKK108467A6707
- RoHS Information
- 9AKK108466A1424
- SCIP
- a53397d5-cbf7-42b6-95c6-f975e1929ea4 Italy (IT)
REACH Declaration9AKK108466A1425
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Simplified SCIPa93352f8-9533-4b70-884d-81677d3a5f2b Poland (PL)4b21ae83-f829-49b0-978f-e9a997a90165 Norway (NO)3e56f5ab-8d13-43de-b923-8cd1b23a23d4 Denmark (DK)e532ad7e-650b-4789-914f-8eb230a72842 Greece (GR)4c5d463d-e3b0-43f5-bac0-ea05a8de427a Bulgaria (BG)724fcbc3-ecd7-4320-b614-1cde80fb441a Germany (DE)628e1ec0-a9ef-40c4-b6b8-ced0589715e0 Netherlands (NL)46e7cf47-cf97-44fc-8d65-9c9bbddecb34 Germany (DE)0343dd4f-1347-4536-bf5f-6c8dc70bfee7 Germany (DE)c0147c77-d395-4dc8-9f91-4b59dac0c6bc Croatia (HR)8038c97d-aae4-4c17-9211-be6617f682d8 Czech Republic (CZ)7af58f7c-17d5-457a-9f84-1255777c8a69 Poland (PL)f1e0c89f-d211-4ee0-a301-c755bd7527c2 Netherlands (NL)b1bf5165-2578-4f81-a19f-10ad7fdbff01 Netherlands (NL)7d626fc3-17e4-49a8-abd6-c7f90a3ce05c Estonia (EE)ba2ab238-ded7-4581-acf5-f6e7e9950830 Portugal (PT)ac4eb6bc-0eb7-400a-95af-7c58e6b51aea Sweden (SE)0896d35d-6278-4043-9dab-d6dde8fdeae6 Poland (PL)3790b548-131e-47f1-a94e-0837c66be19c Finland (FI)efc9b87f-0a0b-421c-9742-ee83a6c628db France (FR)bea4e883-32e1-4459-aacb-d1ec25978acf Sweden (SE)9228390d-cd21-4bbb-8a17-4b1122339f50 Germany (DE)7b830a90-aa3d-4097-b400-c3c186e16934 France (FR)e6f98861-452a-4430-b827-3985c7d76975 Netherlands (NL)9bf0a508-7958-41b8-b4cc-4bb5e304ba9e Spain (ES)f526ac8f-4a85-4daa-98d7-f53d023ef0d1 Netherlands (NL)
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Ordering
- Minimum Order Quantity
- 1 piece
Customs Tariff Number85352100
