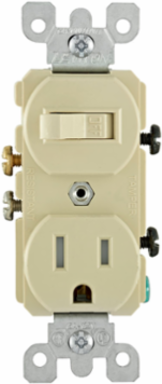

Leviton T5225-I 15 Amp Tamper-Resistant Combination Switch and Outlet, 120V, Ivory
Leviton T5225-I 15 Amp Tamper-Resistant Combination Switch and Outlet, 120V, Ivory
- MPN: T5225-I
- UPC: 078477379240
- PPN: LEV-T5225-I
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$21.93/ EA
Description
15 Amp, 120 Volt, Tamper-Resistant, Duplex Style Single-Pole / 5-15R AC Combination Switch, Commercial Grade, Grounding, Side Wired - Ivory
Features
- Leviton's standard combination switch/receptacle is the perfect choice for any area in a home. Its simple, functional design provides the use of a switch and a tamper-resistant receptacle in a one-gang space. Its impact-resistant exterior ensures damage protection and a long service life. These devices come in a range of colors and are backed by a limited two-year warranty.
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-1 & WD-6
- UL Standard
- UL 20
CSA C22.2 No. 111File #152105
NOM057
Warranty2-Year Limited
Material Specifications
- Actuator Material
- Thermoplastic
- Color
- Ivory
Body MaterialThermoplastic
Strap MaterialSteel
Mechanical Specifications
- Product ID
- Stamped on Strap
- Terminal ID
- Brass-Hot Black-Hot White-Neutral Green-Gnd
- Torque Range
- 14 – 18 in.-lbs
Terminal Accom.14-12 AWG
TerminationSide
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Product Features
- Amperage
- 15 A
- Type
- Duplex Style Combination Switch
Product TypeSwitch/Outlet Combo
Environmental Specifications
- Operating Temperature
- -40°C to 65°C
Electrical Specifications
- Dielectric Voltage
- Withstands 1500V for 1 minute
- Overload UL20 Test
- 100 cycles of OL at 4.8 times rated current
- Receptacle Voltage
- 125V AC
- Switch Voltage
- 120V AC
GroundingGrounding
Receptacle Amperage15 Amp
Switch Amperage15 Amp
Temperature RiseMaximum 30 degrees C rise
AC Horsepower Ratings
- HP Rating
- 1/2HP-120V
Max. Amperage12 Amp
