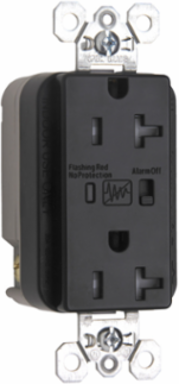

Pass & Seymour TR5362BKSP Tamper-Resistant Heavy-Duty Surge Protective Duplex Receptacle 20A 125V
Pass & Seymour TR5362BKSP Tamper-Resistant Heavy-Duty Surge Protective Duplex Receptacle 20A 125V
- MPN: TR5362BKSP
- UPC: 785007020922
- PPN: P-S-TR5362BKSP
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$120.70/ EA
Description
Tamper-Resistant Extra Heavy-Duty Surge Protective Duplex Receptacle offers increased transient protection, reliability and protection notification (with Audible Alarm and LED Indicator), Back and Side Wire, 20A, 125V. For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.
Features
- Dual mechanical shutter system to help prevent insertions of foreign objects.
- AC receptacles available in 15 and 20 Amp, 125V
- .032 inch thick brass triple-wipe power contacts for lasting retention.
- Corrosion-resistant plated steel strap is locked in to the face and back body to resist pulling away from the face/body assembly.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
Specifications
Specifications
- Depth
- 1.4 in
- Height
- 2.75 in
- Width
- 1.7 in
- Amperage
- 20.0 A
- Number of Wires
- 3.0
- Wire Size
- 14 - 10 AWG
- Wall Plate Included
- No
- Features
- Indicator Lights
- Outlet Type
- Straight Blade
- Outlet Type
- Surge Protected
- Application Sector
- Commercial
- Connection Location
- Back and Side
- Warranty Type
- 1-Year Limited Warranty
- Operating Temperature Min
- -40.0 °C
- Wire Connection Type
- Internal Pressure Plates
ColorBlack
Product LinePass & Seymour
Country of OriginChina
Voltage125.0 V
Indoor/OutdoorIndoor
FeaturesAudible Alarm
Is Tamper-ResistantYes
Number of Receptacles2.0
Number of PolesDouble Pole
Outlet TypeTamper-Resistant
NEMA Configuration Code5-20R
Wire Connection TypeScrew Terminals
Operating Temperature Max60.0 °C
Operating Temperature-40°-60°C
