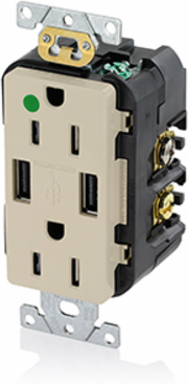

Leviton T5632-HGI Tamper-Resistant USB Receptacle 15 Amp 125 Volt with Duplex Outlet & Heavy-Duty Grade
- MPN: T5632-HGI
- UPC: 078477685464
- PPN: LEV-T5632-HGI
CAD
$26.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Duplex Receptacle Outlet, Heavy-Duty Hospital Grade, Tamper-Resistant, with USB, Two Type A USB Ports (3.6 Amp), Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Ivory
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Standards and Certifications
- ANSI
- C-73
- Certification/Listing
- cCSAus, NOM-ANCE
Applicable StandardsUL 498 and 1310, CSA C22.2 Nos. 42 and 223
NEMAWD-1 & WD-6
Material Specifications
- Body Material
- PBT Thermoplastic polyester resin
- Ground Clips
- Brass
- Line Contacts
- Brass
- Terminal Clamp
- Brass
Face MaterialPBT
Grounding ScrewSteel
Strap MaterialSteel
Terminal ScrewsSteel
Mechanical Specifications
- Product ID
- Stamped on Strap
- Terminal Accom.
- 14-12 AWG
- Termination
- Back or Side Wire
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Product Features
- Color
- Ivory
- Grade
- Heavy-Duty Hospital Grade
Device TypeDuplex Receptacle Outlet
Warranty
- Warranty
- 2-Year Limited
Environmental Specifications
- Flammability
- Rated V-0 per UL 94
Operating Temperature-10°C to 40°C
Electrical Specifications
- Amperage
- 15 A
- Grounding
- Self-Grounding
- Temperature Rise
- Max 30C after 100 cycles OL
- Wire
- 3
Dielectric VoltageWithstands 2000V per CSA
Pole2
Voltage125 VAC
AC Horsepower Ratings
- At Rated Voltage
- 1/2 HP
