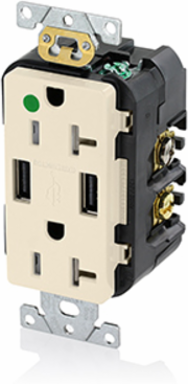

Leviton T5832-HGT Tamper-Resistant USB Duplex Receptacle, 20 Amp, 125 Volt, Heavy-Duty Hospital Grade, Light Almond
Leviton T5832-HGT Tamper-Resistant USB Duplex Receptacle, 20 Amp, 125 Volt, Heavy-Duty Hospital Grade, Light Almond
- MPN: T5832-HGT
- UPC: 078477685518
- PPN: LEV-T5832-HGT
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$20.09/ EA
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-1 & WD-6
Certification/ListingcCSAus, NOM-ANCE
Applicable StandardsUL 498 and 1310, CSA C22.2 Nos. 42 and 223
Material Specifications
- Ground Clips
- Brass
- Face Material
- PBT
- Strap Material
- Steel
- Body Material
- PBT Thermoplastic polyester resin
Line ContactsBrass
Terminal ScrewsSteel
Grounding ScrewSteel
Terminal ClampBrass
Mechanical Specifications
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Terminal Accom.
- 14-12 AWG
Product IDStamped on Strap
TerminationBack or Side Wire
Product Features
- NEMA
- 5-20R
- Country Of Origin
- China
- Feature
- Tamper-Resistant, with USB, Smooth Face
ColorLight Almond
GradeHeavy-Duty Hospital Grade
Device TypeDuplex Receptacle Outlet
Warranty
- Warranty
- 5-Year Limited
Environmental Specifications
- Flammability
- Rated V-0 per UL 94
Operating Temperature-10°C to 40°C
Electrical Specifications
- Amperage
- 20 A
- Dielectric Voltage
- Withstands 2000V per CSA
- Pole
- 2
- Grounding
- Self-Grounding
Wire3
Temperature RiseMax 30C after 100 cycles OL
Voltage125 VAC
AC Horsepower Ratings
- At Rated Voltage
- 1 HP
