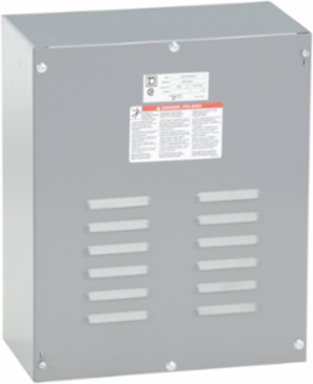

Schneider Electric MC6TB12004L Square D Meter Centre Tap Box, 3 Phase, 4 Wire, 600V, 1200A
- MPN: MC6TB12004L
- UPC: 785901124436
- PPN: SCH-MC6TB12004L
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Square D Meter Centres provide a compact and versatile metering and distribution centre for today's residential, commercial, and industrial markets. This Square D Meter Centre tap box is 3 phase, 4 wire 347/600VAC 1200A with a 50kA short circuit current rating. The 1200A rated vertical bus bar comes factory installed. Four lugs come factory installed and accept (3) 4 AWG to 750kcmil or (4) 4 AWG to 600kcmil or (8) 4 AWG to 250kcmil conductors. It is a main tap box and is suitable for underground or overhead service and as a subfeed device or branch tap box. This tap box meets CSA standards and is a steel NEMA Type 1 grey baked enamel enclosure.
Documentation & Downloads
Specifications
Key Specifications
- Product Destination
- tap-off box
- Bus Rated Current
- 600 A || 1200 A
Range Of ProductSquare D
Product Or Component Typeconnector
Complementary
- Product Certifications
- CSA
- Awg Gauge
- AWG 4...750 kcmil copper or aluminum || AWG 4...600 kcmil copper or aluminum || AWG 4/0...250 kcmil copper or aluminum
- Width
- 584 mm
- Network Number Of Phases
- 3 phases
Height483 mm
Wiring Configuration4-wire
Depth264 mm
Offer Sustainability
- Rohs Exemption Information
- Yes
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
