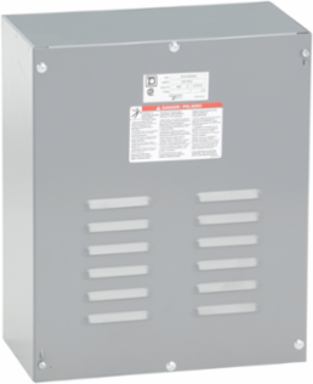

Schneider Electric MC6TB6004L Square D Tap Box, 3 Phase, 4 Wire, 600A, 600V, NEMA Type 1

MPN: MC6TB6004L
UPC: 785901063247
PPN: SCH-MC6TB6004L

$2034.03

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Square D Meter Centres provide a compact and versatile metering and distribution centre for today's residential, commercial, and industrial markets. This Square D Meter Centre tap box is 3 phase, 4 wire 347/600VAC 600A with a 50kA short circuit current rating. The 600A rated vertical bus bar comes factory installed. Four lugs come factory installed and accept (1) 1/0 AWG to 750kcmil and (1) 1/0 to 600kcmil, or (4) 1/0 AWG to 250kcmil conductors. It is a main tap box and is suitable for underground or overhead service and as a subfeed device or branch tap box. This tap box meets CSA standards and is a steel NEMA Type 1 grey baked enamel enclosure.

Documentation & Downloads

Specifications

Key Specifications

Product Destination	tap-off box
Bus Rated Current	600 A

Range Of Product	Square D
Product Or Component Type	connector

Complementary

Product Certifications	CSA
Awg Gauge	AWG 1/0...750 kcmil copper or aluminum \|\| AWG 1/0...600 kcmil copper or aluminum \|\| AWG 1/0...250 kcmil copper or aluminum
Width	381 mm
Network Number Of Phases	3 phases
