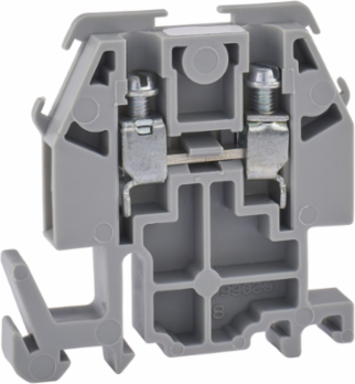

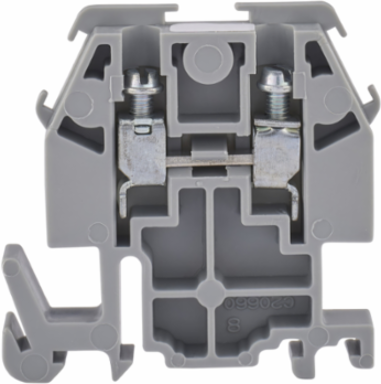

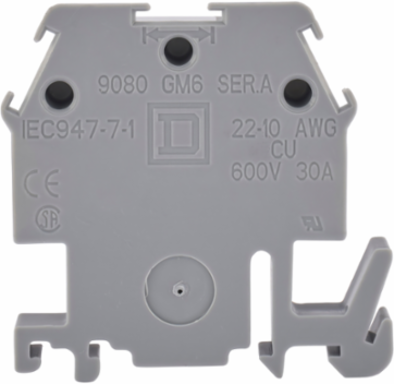

Square D 9080GME6 Linergy Terminal Block, Box Lug Connector, 30A, 600V, Gray
Square D 9080GME6 Linergy Terminal Block, Box Lug Connector, 30A, 600V, Gray
- MPN: 9080GME6
- UPC: 785901743286
- PPN: SCH-9080GME6
- UNSPSC: 39121410
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$4.25/ EA
Description
Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a box lug connector for use with solid or stranded copper wires from 22 through 10 AWG. Each box lug terminal is approved for use with various wire combinations. Each lug accepts 1 10 AWG, 1 12 AWG, 1 14 AWG, 1 or 2 16 AWG, 1 or 2 18 AWG, 1 to 5 20 AWG or 1 to 8 22 AWG wires. The nylon block is molded in grey. This block is UL component recognized and CSA certified for up to 30 ampere up to 600 VAC or VDC.
Features
- Grey colored block, 30 amp, box lug connector
- Meets a wide variety of application requirements
- Offers labor savings with easy wiring requiring a standard screwdriver
Specifications
Physical Attributes
- Color
- Gray
Conformance Attributes
- Product Certifications
- UL recognized E60616 CCN XCFR2, CE, CSA file 62144 class 6228 01
Complementary Attributes
- Line Rated Current
- 30-30 A UL, 30-30 A CSA
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Mounting Support
- 9080GH track, 35 mm DIN rail
- Local Publishable Date
- 2025-11-13
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant
- China ROHS In Scope
- No
- Without Single Use Plastic
- Yes
- Return Indicator
- Y
- Function Option
- Standard
- Electrical Connection
- zinc plated steel box lugs
- Package Weight Lbs
- 9.1 g
- Product Or Component Type
- terminal block
- Quantity Per Set
- set of 50
- Returnability
- Yes
- Ue Rated Operational Voltage2
- 600 V AC/DC
- Medium Desc
- Terminal block, Linergy, box lug connector, grey colored block, 30A, 600V
- Product Kit Identifier
- N
- Number Of Terminal Blocks
- 51 per foot
- Connections Terminals3
- lug zinc plated steel 7-8 lbf.in : AWG 22...AWG 10 copper)
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Legacy WEEE ScopeIn
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdCOMPLIANT
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
AWG GaugeAWG 22...AWG 10 copper
Energy Efficiency OptimizedFalse
Product AvailabilityStock - Normally stocked in distribution facility
Protection Typefingersafe DIN 57470
Range Of Product9080G
Sustainable PackagingNo
Connections Terminalslug zinc plated steel 7-8 lbf.in : AWG 22...AWG 10 copper)
Stocking FlagY
Localisation On Devicestandard
Global Commercial StatusCommercialised
Ue Rated Operational Voltage5600 V AC/DC
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Compliant
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Ambient Air Temperature For Operation
- -40-257 °F
- Packaging Without Single Use Plastic
- Yes
- Reach Free Of SVHC
- Yes
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Product CompatibilityGM6B
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- terminal block
Range Of Product9080G
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 0.235 in
