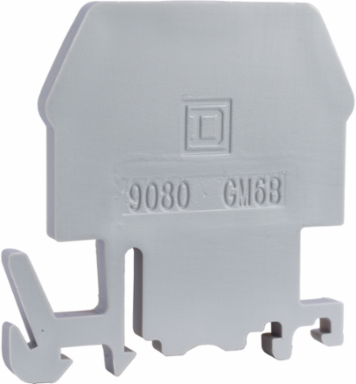

Square D 9080GME6B Linergy End Barrier Terminal Block, 1.68 Inch Width, 0.12 Inch Depth, Nylon, Gray
Square D 9080GME6B Linergy End Barrier Terminal Block, 1.68 Inch Width, 0.12 Inch Depth, Nylon, Gray
- MPN: 9080GME6B
- UPC: 785901058755
- PPN: SCH-9080GME6B
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1.45/ EA
Description
Linergy NEMA sectional terminal blocks are for terminating wire and are designed to NEMA standards. This end barrier is used to cover the open side of the 9080GM6 or 9080GR6 terminal block. An end barrier is required at the end of all assemblies of 9080GM6 or 9080GR6 block to meet the UL component recognition and CSA certification requirements. The nylon end barrier is molded in grey.
Specifications
Physical Attributes
- Color
- Gray
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Mounting Support
- 9080GH track, 35 mm DIN rail
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1918
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Energy Efficiency Optimized
- False
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 10
- Returnability
- Yes
- Warranty In Months
- 18
- Pn
- 1
- Width Nominal
- 1.68 in
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Materialnylon
Product Or Component TypeEnd Barrier
Range Of Product9080G
Sustainable PackagingNo
Offer Owner Code190788
Height Nominal1.67 in
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
Ambient Air Temperature For Operation-40-257 °F, -40-257 °F
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- End Barrier
Range Of Product9080G
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- Mexico
Depth0.12 in
