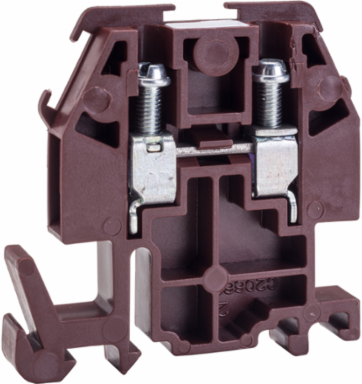

Square D 9080GMN6 Linergy Terminal Block, Brown, 30A, 600 V, AWG 22-10 Copper
- MPN: 9080GMN6
- UPC: 785901925446
- PPN: SCH-9080GMN6
CAD
$2.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a box lug connector for use with solid or stranded copper wires from 22 through 10 AWG. Each box lug terminal is approved for use with various wire combinations. Each lug accepts 1 10 AWG, 1 12 AWG, 1 14 AWG, 1 or 2 16 AWG, 1 or 2 18 AWG, 1 to 5 20 AWG or 1 to 8 22 AWG wires. The nylon block is molded in brown. This block is UL component recognized and CSA certified for up to 30 ampere up to 600 VAC or VDC.
