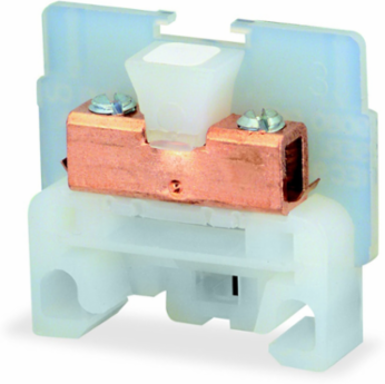

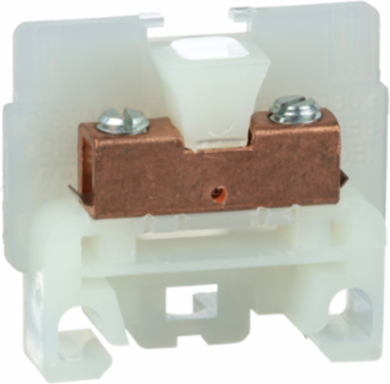

Square D 9080GK6 Linergy Terminal Block, 40A, 600 V, Size 1.4 Inch x 1.39 Inch x 0.35 Inch
- MPN: 9080GK6
- UPC: 785901000822
- PPN: SCH-9080GK6
CAD
$5.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a box lug connector for use with solid or stranded copper wires from 22 through 10 AWG. Each box lug terminal is approved for use with various wire combinations. Each lug accepts 1 10 AWG, 1 or 2 12 AWG, 1 or 2 14 AWG, 1 to 4 16 AWG, 1 to 5 18 AWG, 1 to 8 20 AWG or 1 to 10 22 AWG wires. The nylon block is molded in the natural color of nylon (off white). This block is UL component recognized for up to 70 amperes and CSA certified for up to 40 ampere. Both UL and CSA have the block rated at up to 600 VAC or VDC.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth0.35 in
Physical Attributes
- Color
- natural
Complementary Attributes
- Line Rated Current
- 40-40 A CSA70-70 A UL
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Mounting Support
- 9080GH track, panel
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1918
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Awg Gauge
- 22 AWG...10 AWG copper
- Energy Efficiency Optimized
- False
- Number Of Terminal Blocks
- 35 per foot
- Product Or Component Type
- terminal block
- Range Of Product
- 9080G
- Sustainable Packaging
- No
- Width Nominal
- 1.4 in
- Connections - Terminals
- lug copper 11-12 lbf.in : 22 AWG...10 AWG copper)
- Package Weight(Lbs)
- 15.422 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Certificate AgencyCSA file 62144 class 6228 01, CE, UL recognized E60616 CCN XCFR2
Local Publishable Date2026-06-28
Stocking FlagN
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Electrical Connectioncopper box lugs
Localisation On Devicestandard
Product AvailabilityStock - Normally stocked in distribution facility
Quantity Per Setset of 50
ReturnabilityYes
Height Nominal1.39 in
[Ue] Rated Operational Voltage600 V AC/DC
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536904000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Packaging Made With Recycled Cardboard
- No
- Product Compatibility
- GK6B
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation-40-257 °F, -40-257 °F
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- terminal block
Range Of Product9080G
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
