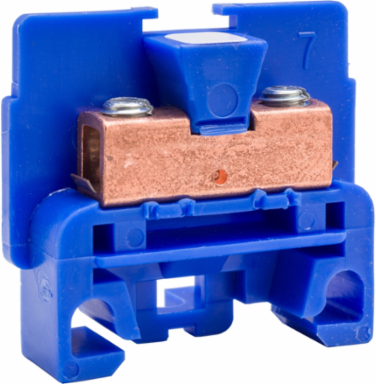

Square D 9080GKL6 Linergy Terminal Block, Blue 40A 600V, UL/CSA Certified
Square D 9080GKL6 Linergy Terminal Block, Blue 40A 600V, UL/CSA Certified
- MPN: 9080GKL6
- PPN: SCH-9080GKL6
- UNSPSC: 39121410
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$5.40/ EA
Description
Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a box lug connector for use with solid or stranded copper wires from 22 through 10 AWG. Each box lug terminal is approved for use with various wire combinations. Each lug accepts 1 10 AWG, 1 or 2 12 AWG, 1 or 2 14 AWG, 1 to 4 16 AWG, 1 to 5 18 AWG, 1 to 8 20 AWG or 1 to 10 22 AWG wires. The nylon block is molded in blue. This block is UL component recognized for up to 70 amperes and CSA certified for up to 40 ampere. Both UL and CSA have the block rated at up to 600 VAC or VDC.
Specifications
Complementary Attributes
- Line Rated Current
- 40-40 A CSA, 70-70 A UL
UE Rated Operational Voltage600 V AC/DC
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Legacy WEEE Scope
- In
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- COMPLIANT
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- AWG Gauge
- AWG 22...AWG 10 copper
- Localisation On Device
- standard
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- 9080G
- Sustainable Packaging
- No
- Relationship Type
- Compatible relationship
- Product Manager
- STEVEN NATALE
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Publishable Date2025-11-13
Scope PerimeterOutside of Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant
China ROHS In ScopeNo
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Electrical Connectioncopper box lugs
Number Of Terminal Blocks35 per foot
Product Or Component Typeterminal block
ReturnabilityNo
Connections Terminalslug copper 11-12 lbf.in : AWG 22...AWG 10 copper)
Product Kit IdentifierN
Environment Attributes Main
- EU ROHS Directive
- Compliant?, Compliant
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of SVHC
- Yes
ROHS Exemption InformationYes
Reach Free SHVCYes
China ROHS RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Mercury FreeYes
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- terminal block
Range Of Product9080G
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
