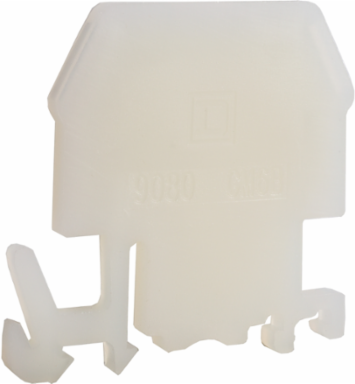

Square D 9080GM6B End Barrier, Nylon, 1.68 Inch Width, 1.67 Inch Height, Set of 10
Square D 9080GM6B End Barrier, Nylon, 1.68 Inch Width, 1.67 Inch Height, Set of 10
- MPN: 9080GM6B
- UPC: 785901744023
- PPN: SCH-9080GM6B
- UNSPSC: 39121410
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1.92/ EA
Description
Linergy NEMA sectional terminal blocks are for terminating wire and are designed to NEMA standards. This end barrier is used to cover the open side of the 9080GM6 or 9080GR6 terminal block. An end barrier is required at the end of all assemblies of 9080GM6 or 9080GR6 block to meet the UL component recognition and CSA certification requirements. The nylon end barrier is molded in the natural color of nylon (off white).
Features
- Used to cover open side of 9080GM6, 9080GR6 terminal blocks
- Required at end of all assemblies of 9080GM6, 9080GR6 blocks
- Molded Nylon in off white color
- Set of 10 in Package
Specifications
Physical Attributes
- Color
- natural
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Mounting Support
- 9080GH track, 35 mm DIN rail
- Local Publishable Date
- 2025-11-13
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant
- China ROHS In Scope
- No
- Without Single Use Plastic
- Yes
- Return Indicator
- Y
- Function Option
- Standard
- Material
- nylon
- Product Availability
- Stock - Normally stocked in distribution facility
- Quantity Per Set
- set of 10
- Returnability
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Stocking Flag
- N
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Legacy WEEE ScopeIn
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdCOMPLIANT
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Energy Efficiency OptimizedFalse
Package Weight Lbs4.536 g
Product Or Component TypeEnd Barrier
Range Of Product9080G
Sustainable PackagingNo
Medium DescEnd barrier, Linergy, natural color, nylon, set of 10
Product Kit IdentifierN
Environment Attributes Main
- Take Back
- No, Nej
- Ambient Air Temperature For Operation
- -40-257 °F, -40-257 °F
- ROHS Exemption Information
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
EU ROHS DirectiveCompliant , Compliant
Reach Free SHVCYes
Toxic Heavy Metal FreeYes
Packaging Made With Recycled CardboardYes
Reach Free Of SVHCYes
General Attributes
- Product Or Component Type
- End Barrier
Range Of Product9080G
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 0.12 in
