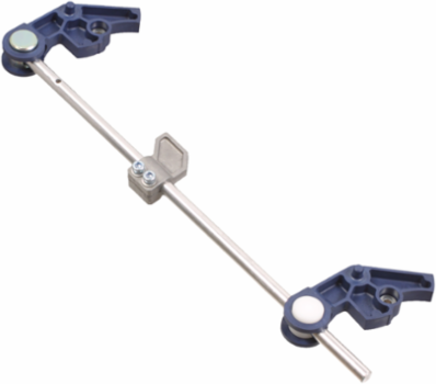

Schneider Electric LA9FF4F TeSys F Mechanical Interlock for 2 Vertical Contactors
- MPN: LA9FF4F
- PPN: SCH-LA9FF4F
CAD
$243.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric LA9FF4F TeSys F Mechanical Interlock is engineered for optimal performance in automation and control applications, specifically facilitating the safe operation of two vertical contactors. This interlock enhances system reliability by preventing both contactors from being engaged simultaneously, thereby reducing the risk of electrical faults and ensuring operational safety. With its robust design, it seamlessly integrates into industrial environments, making it an essential component for modern starter and contactor setups.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Czechia, France, United States |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Interlocked Device | top CR1F150 3P or 4Pbottom LC1F115...LC1F150 3P or 4P, top LC1F115...LC1F150 3P or 4P, bottom CR1F150 3P or 4P |
| Local Publishable Date | 2026-07-28 |
| Stocking Flag | N |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 3 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Short Name | LA9F |
| Interlocking Type | mechanical |
| Mounting Support | asymmetrical AM1-EC rail |
| Product Or Component Type | mechanical interlock |
| Range Of Product | TeSys F |
| Sustainable Packaging | Yes |
| Accessory / Separate Part Category | interlocking accessory |
| Package Weight(Lbs) | 430.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1505009EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2542 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Compatibility Code | interlock vertical |
| Energy Efficiency Optimized | False |
| Mounting Position | 2 vertical |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range | TeSys |
| Returnability | Yes |
| Pep Code | ENVPEP1505009EN |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908180 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Take Back | No |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1505009EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Product Compatibility | CR1F, LC1F |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Circularity Profile | ENVEOLI1505009EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1505009EN |
General Attributes
| Product Or Component Type | mechanical interlock |
|---|
| Range Of Product | TeSys F |
|---|
ETIM
| ETIM 8 | EC002498 |
|---|
| ETIM 9 | EC002498 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
