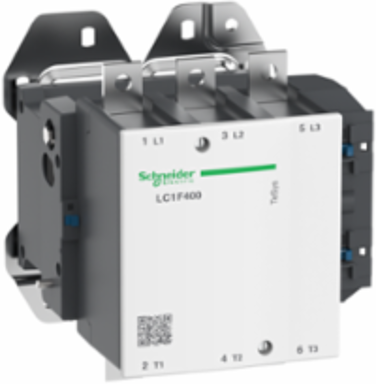

Schneider Electric LC1F400L7 TeSys F Contactor 3P 400A 208V AC - IP20 Protection
- MPN: LC1F400L7
- PPN: SCH-LC1F400L7
CAD
$4537.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered to withstand demanding industrial applications, the Schneider Electric LC1F400L7 TeSys F Contactor provides robust performance with a rated current of 400A. Operating efficiently at 208V AC, this 3-pole contactor is ideal for various automation and control tasks, ensuring reliable switching operations in both commercial and industrial settings. With an IP20 protection rating, it safeguards against accidental contact and is designed to integrate seamlessly into your existing NEMA systems, making it a dependable choice for those looking to enhance their control systems.
Documentation & Downloads
Specifications
Additional
- Amperage
- 400 A AC-3, 500 A AC-1
- Rated Breaking Capacity
- 3200 A IEC 60947-4-1
- Operating Time
- 40-65 ms closing, 100-170 ms opening
- Motor Power
- 110 kW at 220-230 V AC, 200 kW at 380-400 V AC, 220 kW at 415 V AC, 250 kW at 440 V AC, 257 kW at 500 V AC, 280 kW at 660-690 V AC, 185 kW at 1000 V AC
- Width
- 213 mm
- Depth
- 219 mm
- Mounting Support
- Plate
- Rated Insulation Voltage
- 1000 V IEC 60947-4-1, 1500 V VDE 0110 group C
- Associated Fuse Rating
- 400 A aM <=440 V, 500 A gG <=440 V
- IP Degree of Protection
- IP20 front face with shrouds IEC 60529
- Power Dissipation Per Pole
- 65 W AC-1, 42 W AC-3
- Hold-in Power Consumption
- 15 VA 40-400 Hz
- Standards
- EN 60947-1, IEC 60947-1, EN 60947-4-1, IEC 60947-4-1, JIS C8201-4-1
- RoHS Compliance
- Compliant with Exemptions
- Warranty
- 18 months
- Country of Origin
- Czech Republic
Voltage<= 1000 V AC 50/60 Hz, <= 460 V DC
Rated Short-Time Withstand Current3600 A 10 s, 2400 A 30 s, 1700 A 1 min, 1200 A 3 min, 1000 A 10 min at 40 C
Maximum Operating Rate2400 cycles/hour at 55 C
Poles3P
Height206 mm
Net Weight9.1 kg (20.06 lb)
Power Pole Contact Composition3 NO
Control Circuit Voltage208 V AC 40-400 Hz
Overvoltage CategoryIII
Mechanical Durability10 million cycles
Inrush Power1075 VA 40-400 Hz
Operating Altitude3000 m (9842.52 ft) without derating
Product CertificationsRINA, RMRS, DNV, CB, LROS, BV, UL, ABS, CCC, UKCA
Mercury FreeYes
ColorNot specified
