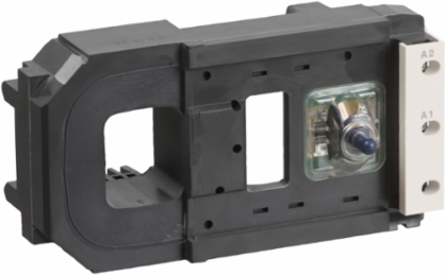

Schneider Electric LX1FK600 TeSys F Contactor Coil 550-600V AC 40-400Hz, 2400 Cycles/Hour, 1.15kg
- MPN: LX1FK600
- PPN: SCH-LX1FK600
CAD
$1776.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys F AC coil 550/600V 40-400Hz (voltage code X7), low sealed consumption, for TeSys F 3-pole and 4-pole contactors LC1F500. It operates in voltage limits 0.85-1.1 Uc and environments until 55°C. It provides high operating rates to the contactor, until 2400 cycles/hour. Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, France
Complementary Attributes
- Control Circuit Voltage Limits
- operational 0.85...1.1 Uc 40...400 Hz 55 °C), drop-out 0.3...0.5 Uc 40...400 Hz 55 °C)
- Maximum Operating Rate
- 2400 cyc/h 55 °C
Control Circuit TypeAC 40...400 Hz
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Average Resistance
- 232 Ohm inrush 20 °C, 5660 Ohm holding 20 °C
- Carbon Footprint Of The Distribution Phase [A4]
- 0.049774529084509175, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0003999825873412172, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 69 kg CO2 eq., 68.82266544572599
- Local Publishable Date
- 2024-10-29
- Stocking Flag
- Y
- Serviceability
- No
- Field Service Division
- PPIBS
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2542
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Short Name
- LX1FK
- Heat Dissipation
- 18-18 W 40...400 Hz
- Inrush Power In Va
- 1100-1100 VA 40...400 Hz cos phi 0.9 (at 20 °C)
- Product Availability
- Stock - Normally stocked in distribution facility
- Range
- TeSys
- Returnability
- Yes
- Sustainable Packaging
- No
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 78.84
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; China, CN
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; China, CN
- [Uc] Control Circuit Voltage
- 550...600 V AC 40...400 Hz
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Operating Time100...170 ms opening, 40...75 ms closing
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3 kg CO2 eq., 0.28693227533080673
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.9 kg CO2 eq., 0.9122731131826548
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
TraceabilityNo
Weee ScopeOut
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Coil Technologywithout built-in suppressor module
Energy Efficiency OptimizedFalse
Inductance Of Closed Circuit23.9 H
Mechanical Durability10 Mcycles
Product Or Component Typecontactor coil
Range Of ProductTeSys F
Software Versionv6.1
Total Lifecycle Carbon Footprint70 kg CO2 eq.
Pep Verification Date2025-07-19
Psr VersionPSR-0005-ed3-EN-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Manufacturing [A1-a3]China, CN
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; China, CN
Recyclability Potential, In %95
Hold-in Power Consumption In Va18-18 VA 40...400 Hz cos phi 0.3 (at 20 °C)
Package Weight(Lbs)1.15 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Operation-5-55 °C, -5-55 °C
Recycled Metal Content At Cr Level0 %
Carbon Footprint70.0720453459113
Packaging Made With Recycled CardboardYes
Product CompatibilityLC1F500
