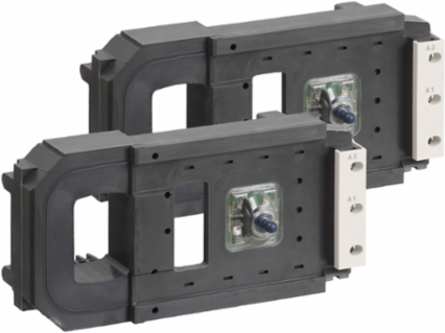

Schneider Electric LX1FX110 TeSys F Contactor Coil 110/120V AC 40-400Hz, 600 Cycles/Hour, 3kg
- MPN: LX1FX110
- PPN: SCH-LX1FX110
CAD
$4341.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys F AC coil 110/115V 40-400Hz (voltage code F7/FE7), low sealed consumption, for TeSys F 3-pole and 4-pole contactors LC1F780. Set of 2 identical coils, to be connected in series. It operates in the voltage limits 0.85-1.1 Uc and environments until 55°C. It provides to the contactor high operating rates until 600 cycles/hour. Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France
Complementary Attributes
- Control Circuit Type
- AC 40...400 Hz
- Maximum Operating Rate
- 600 cyc/h 55 °C
Control Circuit Voltage Limitsoperational 0.85...1.1 Uc 40...400 Hz 55 °C)drop-out 0.2...0.4 Uc 40...400 Hz 55 °C)
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Traceability
- No
- Weee Scope
- Out
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Resistance
- 230 Ohm holding 20 °C4.95 Ohm inrush 20 °C
- Device Short Name
- LX1FX
- Inductance Of Closed Circuit
- 0.21 H
- Mechanical Durability
- 5 Mcycles
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- TeSys
- Returnability
- No
- [Uc] Control Circuit Voltage
- 110...120 V AC 40...400 Hz
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8504508000
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Publishable Date2026-06-27
Stocking FlagY
ServiceabilityNo
Field Service DivisionPPIBS
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2542
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Coil Technologywithout built-in suppressor module
Heat Dissipation44-44 W 40...400 Hz
Inrush Power In Va2100-2100 VA 40...400 Hz cos phi 0.9 (at 20 °C)
Operating Time130...230 ms opening40...80 ms closing
Product Or Component Typecontactor coil
Range Of ProductTeSys F
Sustainable PackagingNo
Hold-in Power Consumption In Va50-50 VA 40...400 Hz cos phi 0.3 (at 20 °C)
Package Weight(Lbs)3.122 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Mercury Free
- Yes
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- LC1F780
Ambient Air Temperature For Operation-5-55 °C, -5-55 °C
Recycled Metal Content At Cr Level0 %
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- contactor coil
Range Of ProductTeSys F
ETIM
- ETIM 8
- EC001043
ETIM 9EC001043
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
